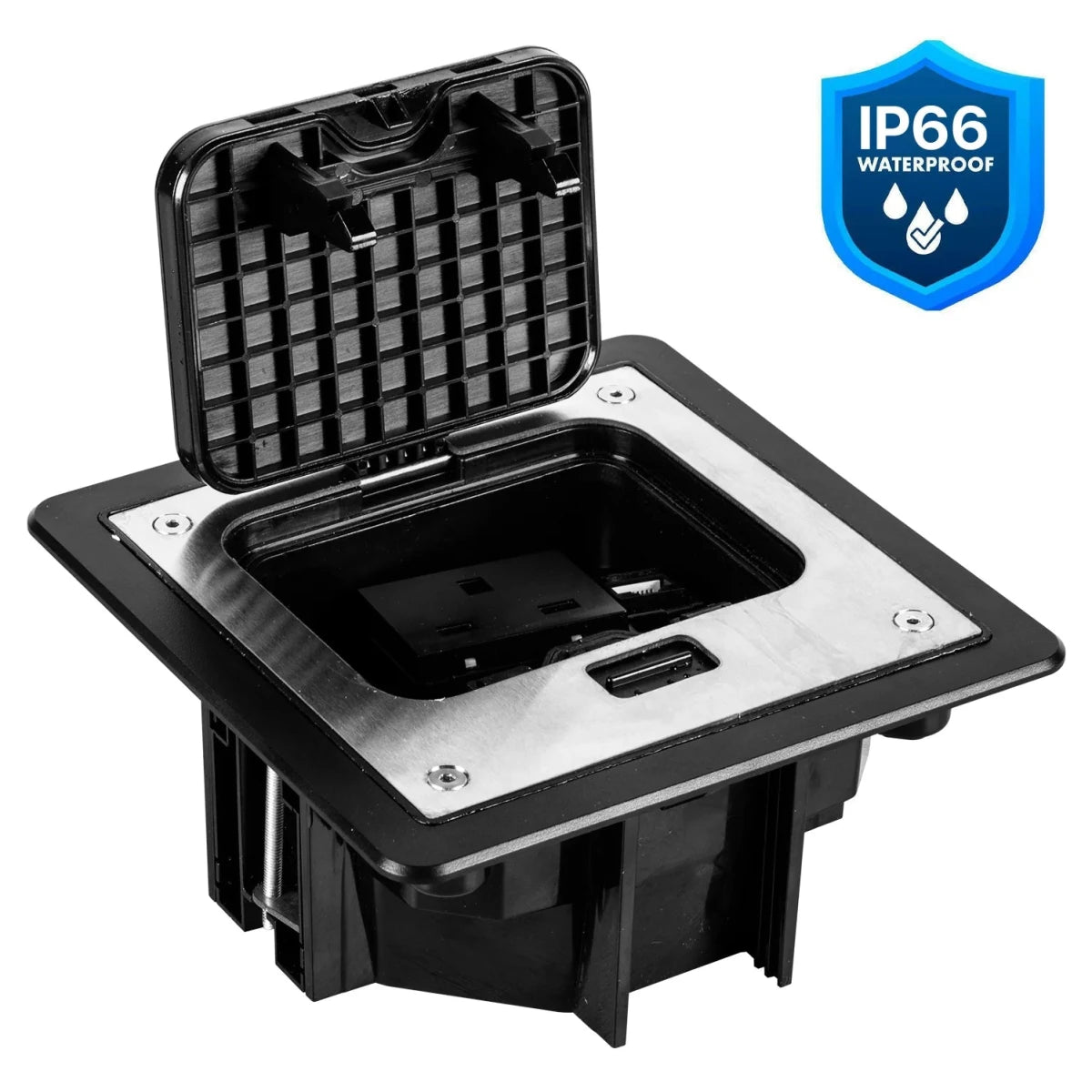

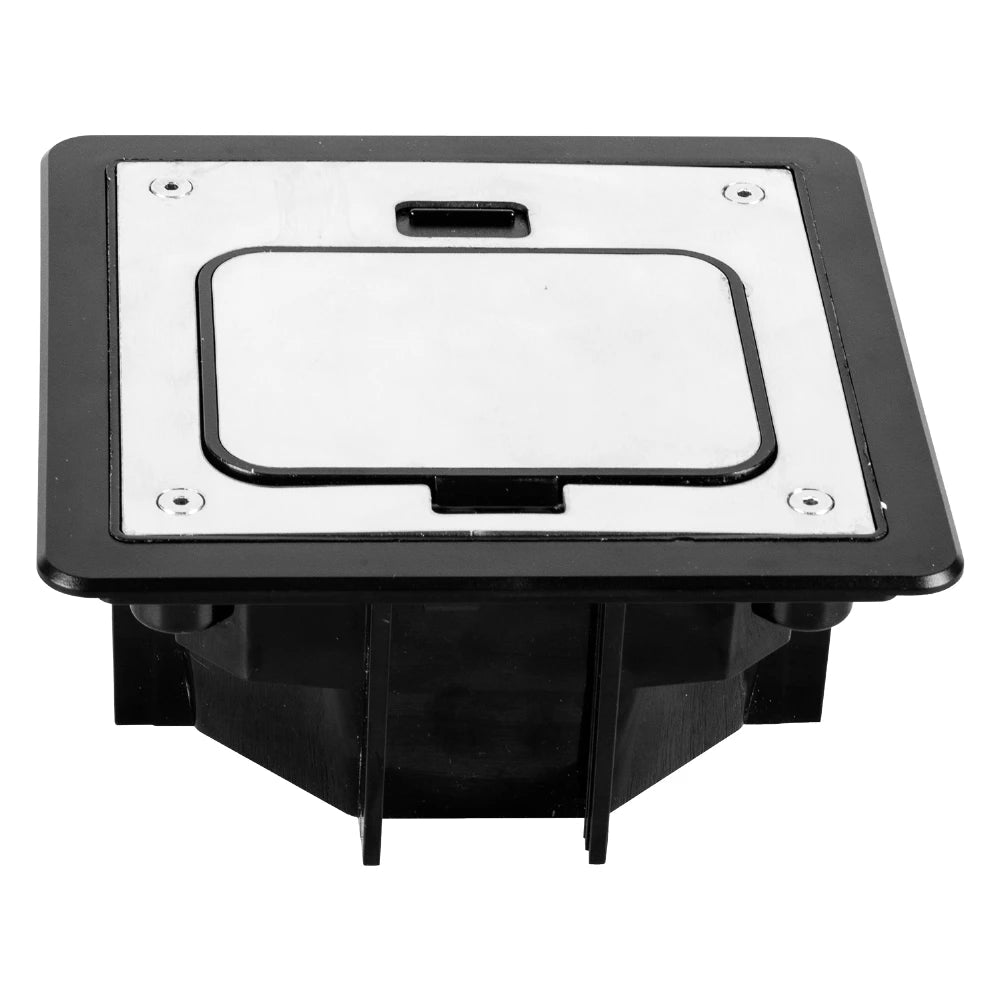

The FS-066 Outdoor Floor Box is a premium in-ground power and data solution designed for outdoor environments. Featuring a sleek pop-up design, it provides easy access to power and network connections while maintaining a clean and modern floor appearance. With a high IP66 rating, it ensures excellent protection against water, dust, and harsh weather conditions.

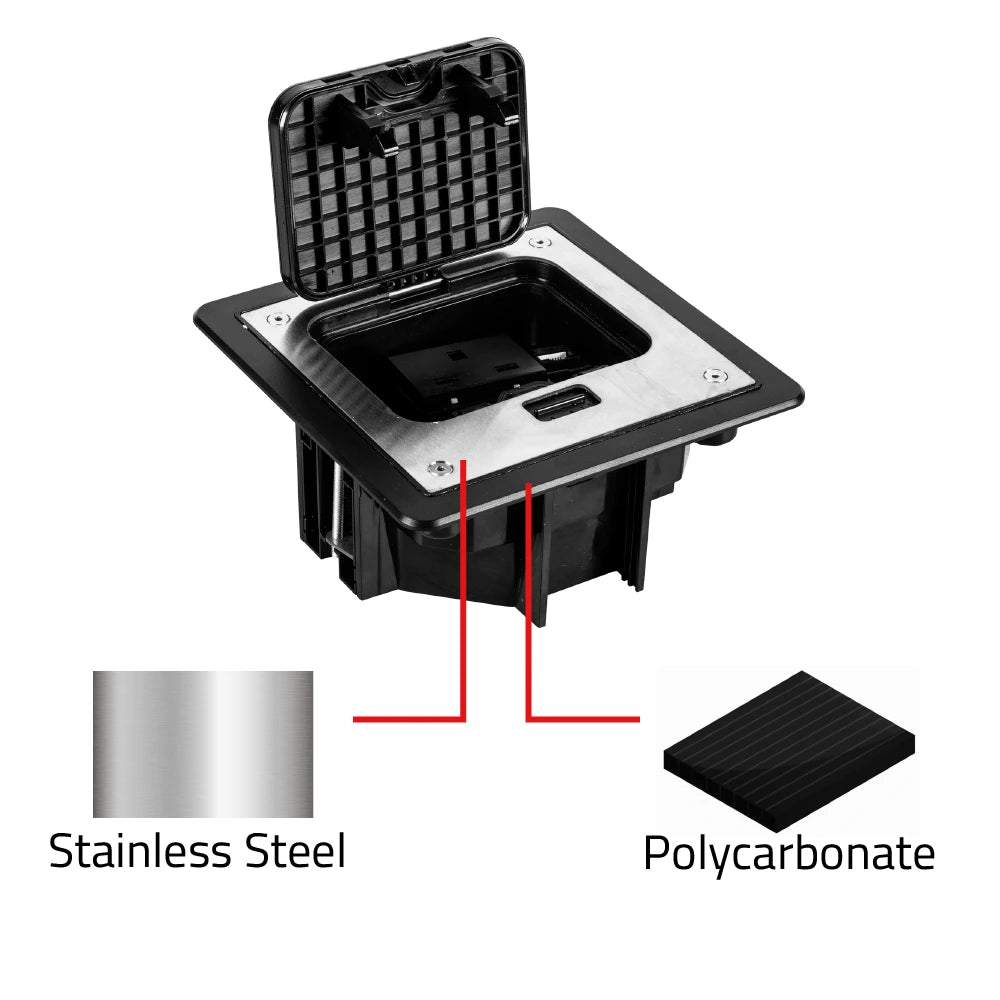

Constructed from durable stainless steel and polycarbonate, this floor box is built to withstand demanding outdoor environments, making it ideal for residential, commercial, and public applications such as gardens, patios, poolsides, and walkways.

Operation & Functionality

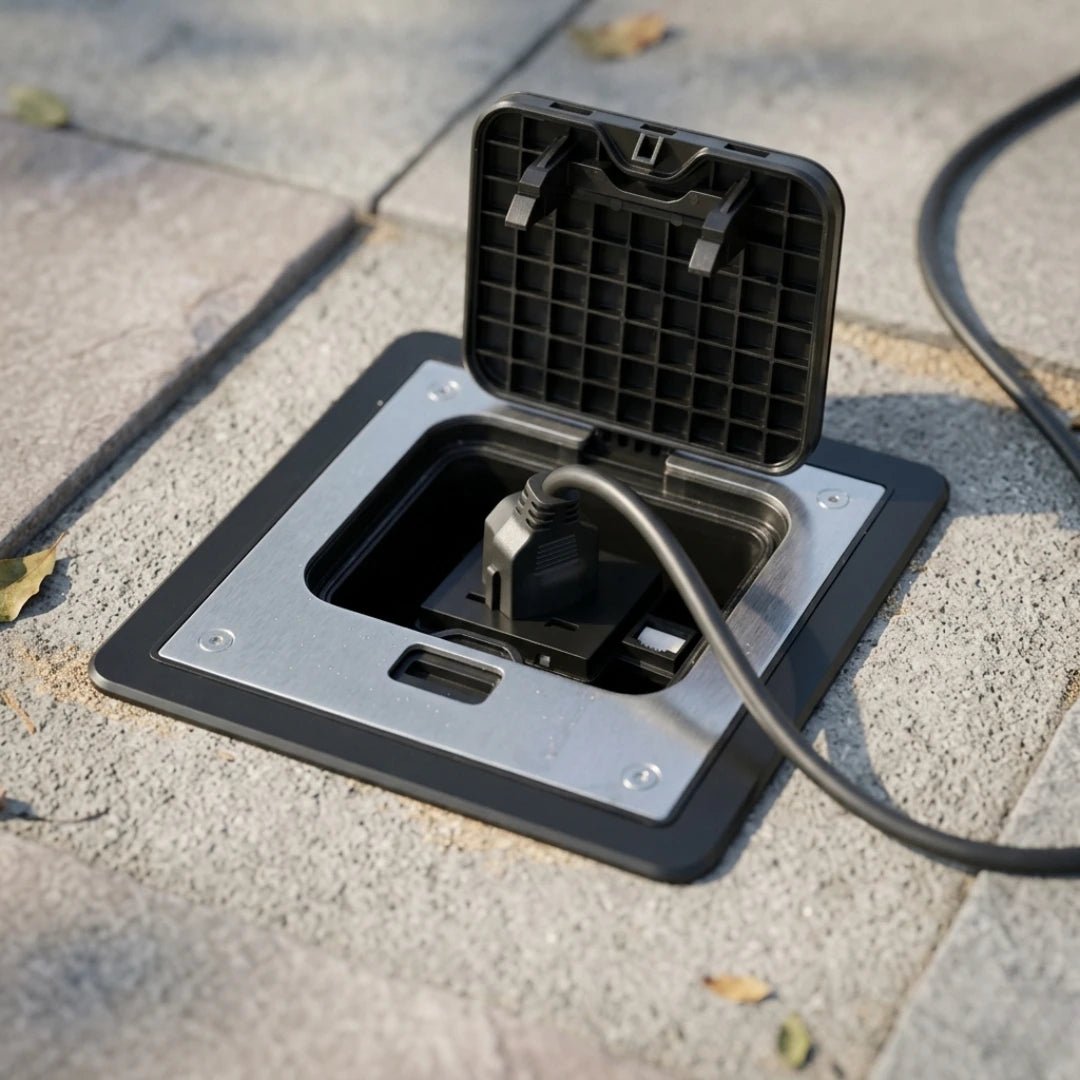

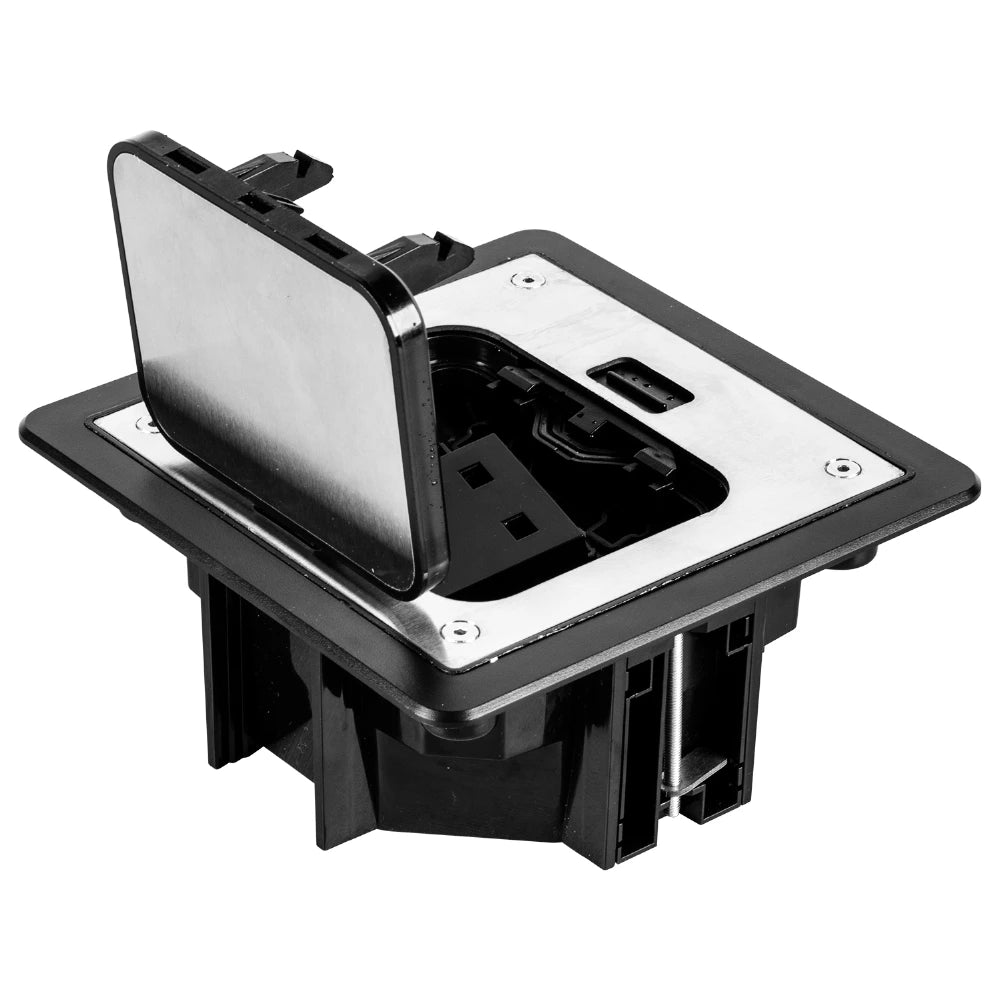

The floor box features a pop-up cover mechanism that allows quick access to the internal sockets when needed and securely closes to protect against environmental elements.

It includes:

• 13A power socket for electrical devices

• CAT6A data port for network connectivity


This makes it a versatile solution for powering devices and providing data access in outdoor or semi-outdoor areas.

Key Features

• In-ground recessed design with pop-up cover.

• High protection rating IP66 (water & dust resistant).

• Durable stainless steel + polycarbonate construction.

• Includes 13A socket + CAT6A data port.

• Easy installation and user-friendly operation.

• Wide operating temperature range (-20°C to 45°C).

• Suitable for residential and commercial outdoor use.


Technical Specifications

• Input Voltage: 250V / 50–60Hz

• Number of outlets: 2

• Socket type: 13A + CAT6A

• Cover type: Pop-Up Cover

• IP Rating: IP66

• Operating Temperature: -20°C to 45°C

• Protection Class: Class I


Mechanical Data

• Housing Material: Stainless Steel + Polycarbonate

• Cover Material: Stainless Steel

• Available Colors: Stainless Steel + Black

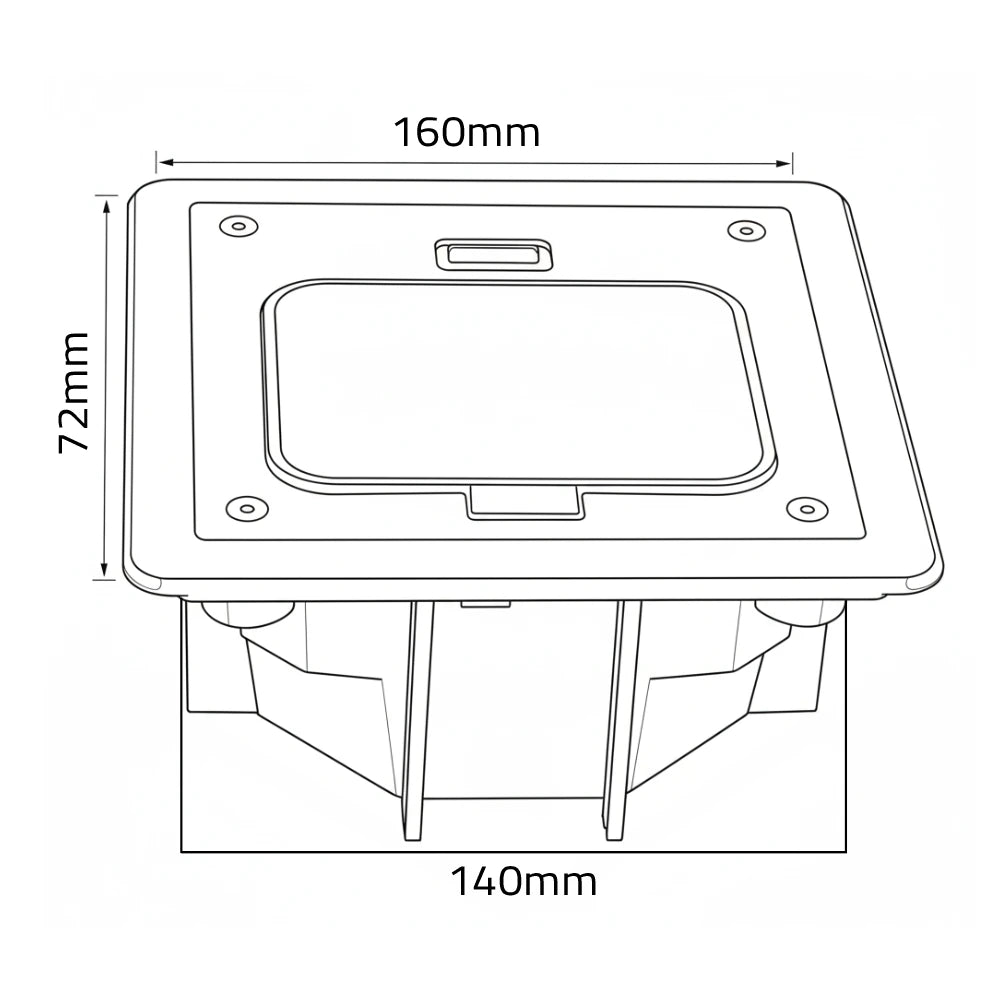

Dimensions

• Cut-out Size: 140 mm

• Length: 160 mm

• Width: 160 mm

• Height: 72 mm

• Weight: 564 g

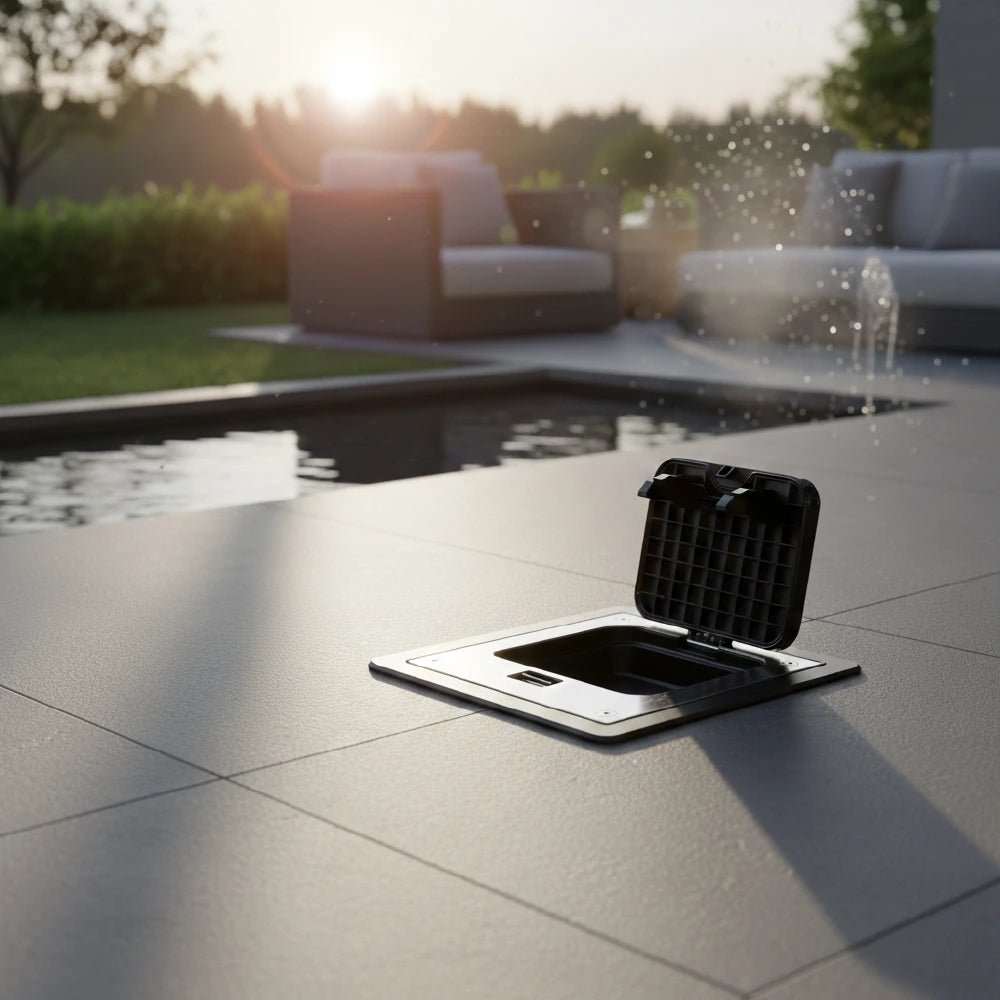

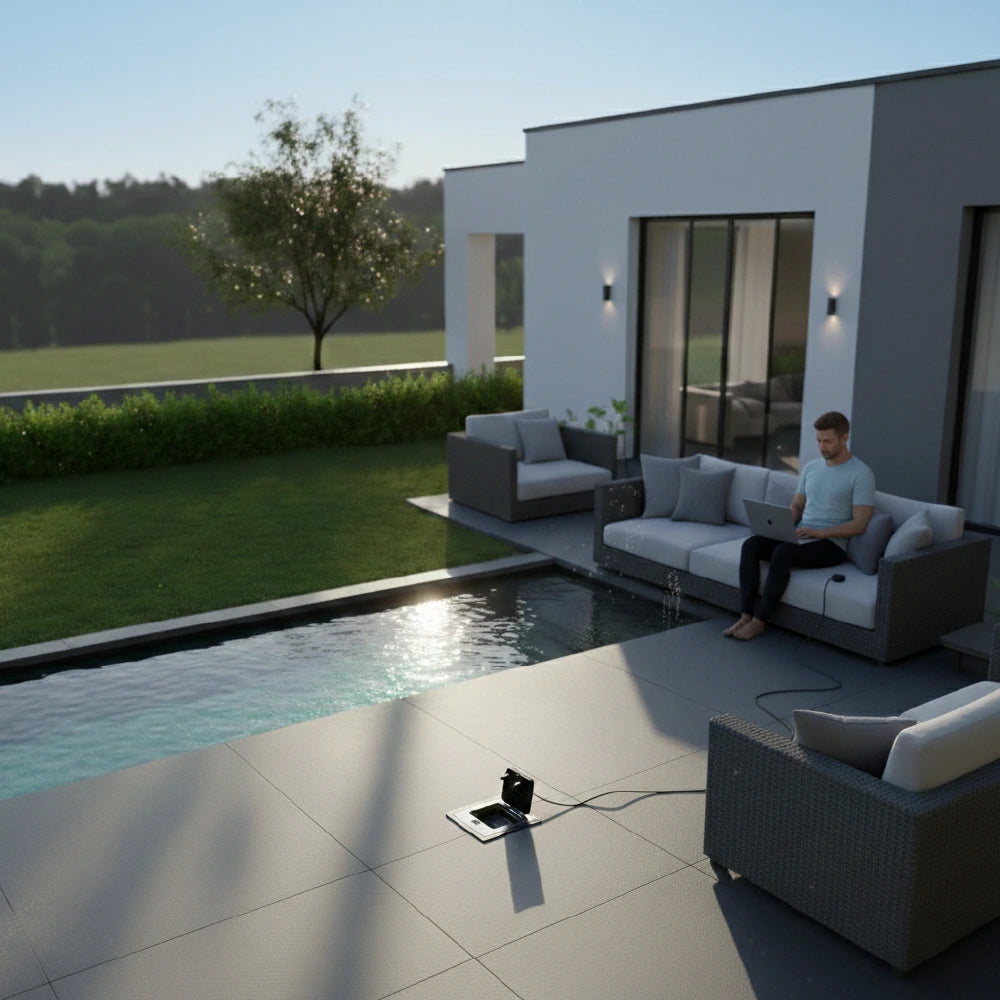

Applications

Ideal for use in:

• Gardens & outdoor spaces

• Poolside areas

• Residential villas

• Shopping malls

• Offices & public areas

• Educational & healthcare facilities
