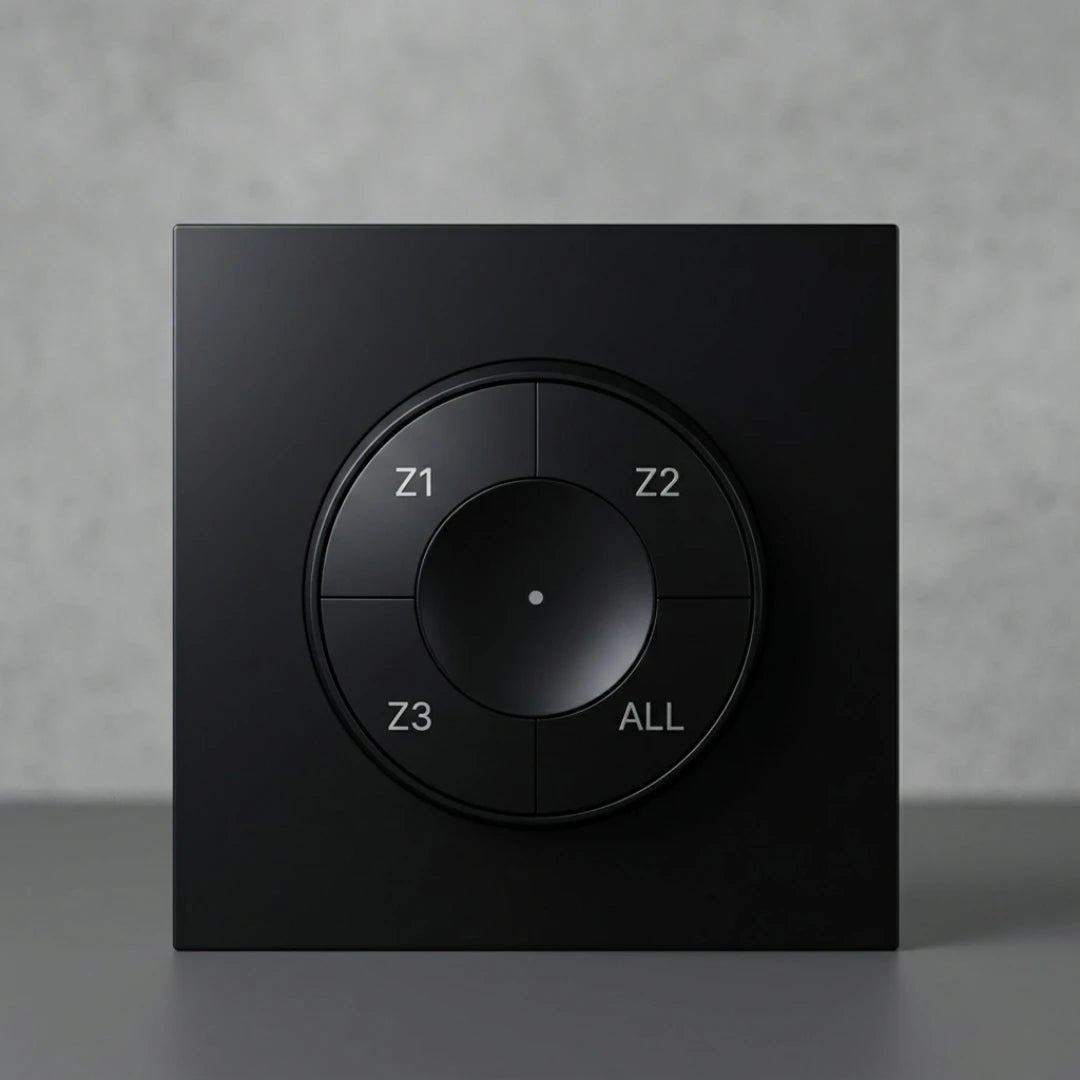

ULTRALIGHT A-Z SMART SWITCH

Model: UL-AZ1002-PB

The ULTRALIGHT A-Z Smart Switch is an advanced wireless lighting control solution designed for modern smart environments. Using RF 2.4G technology, it allows seamless control of lighting systems without complex wiring, making it ideal for residential and commercial applications.

With its elegant wall-mounted design, rotary control ring, and multi-zone buttons, it offers intuitive and flexible lighting management.

Design & Operation

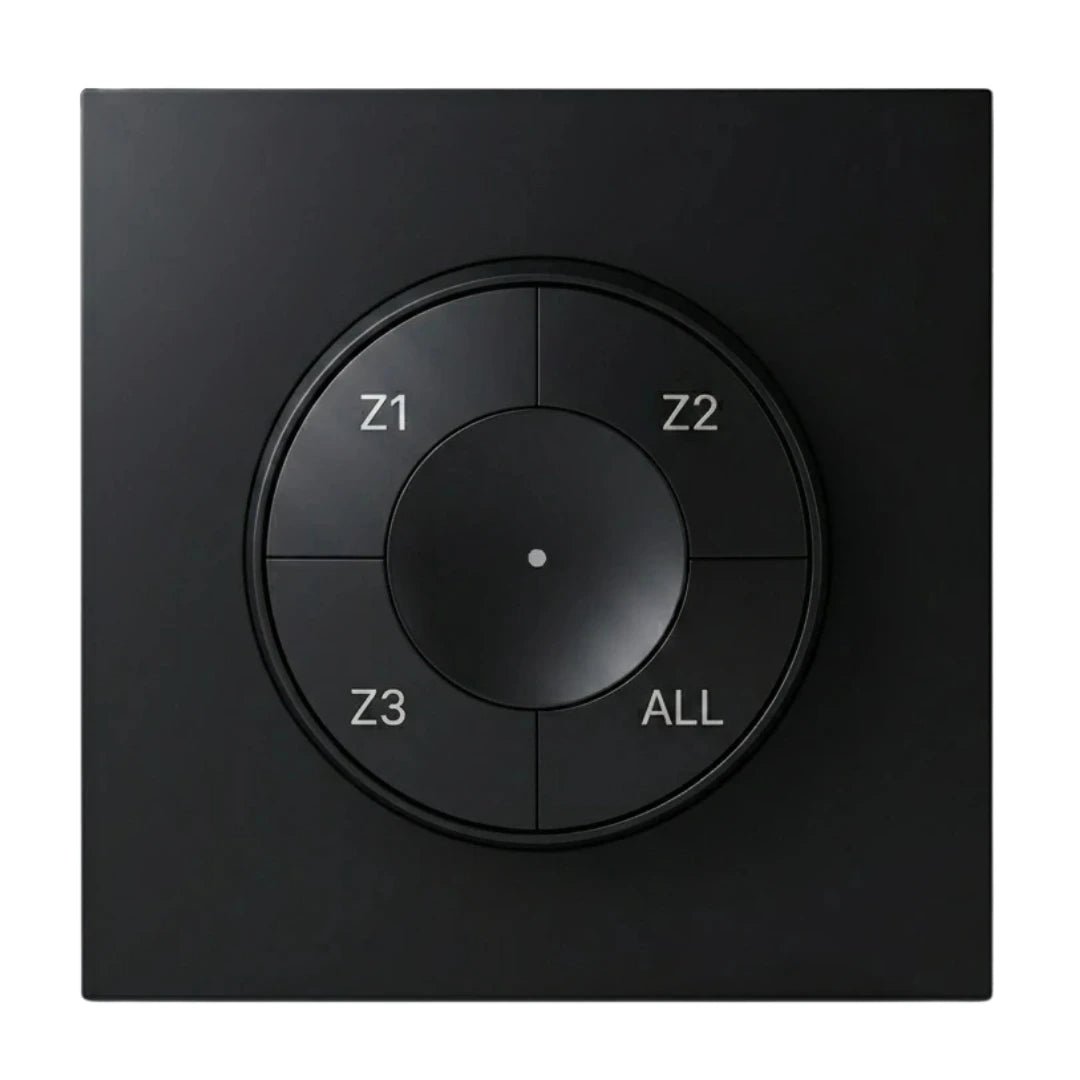

The switch includes:

•
  Rotary ring for brightness and color control

•
  Central button to switch between:


  DIM mode


  CCT mode



•
  Zone buttons:


  Z1 / Z2 / Z3


  ALL (global control)



•
  LED indicator:


  Green: Dim mode


  Red: CCT mode




Core Functions

1) Dimming Control

Adjust brightness from 0% to 100% using the rotary ring.

2) Color Temperature Control

Switch between warm and cool lighting (CCT adjustment).

3) Zone Control

•
  Control 3 independent zones

•
  Use ALL for group control

•
  Individual or combined operation


4) ON/OFF Control

•
  Single press: ON

•
  Second press: OFF


Usage Scenarios

•
  Select a zone → adjust brightness or color

•
  Use center button to switch modes

•
  Use ALL for full-area control


Key Features

•
  Wireless RF 2.4G control system

•
  Supports up to 30 receivers per zone

•
  Full control of:


  Power ON/OFF


  Brightness


  Color temperature



•
  Easy pairing and operation

•
  Modern, minimal design

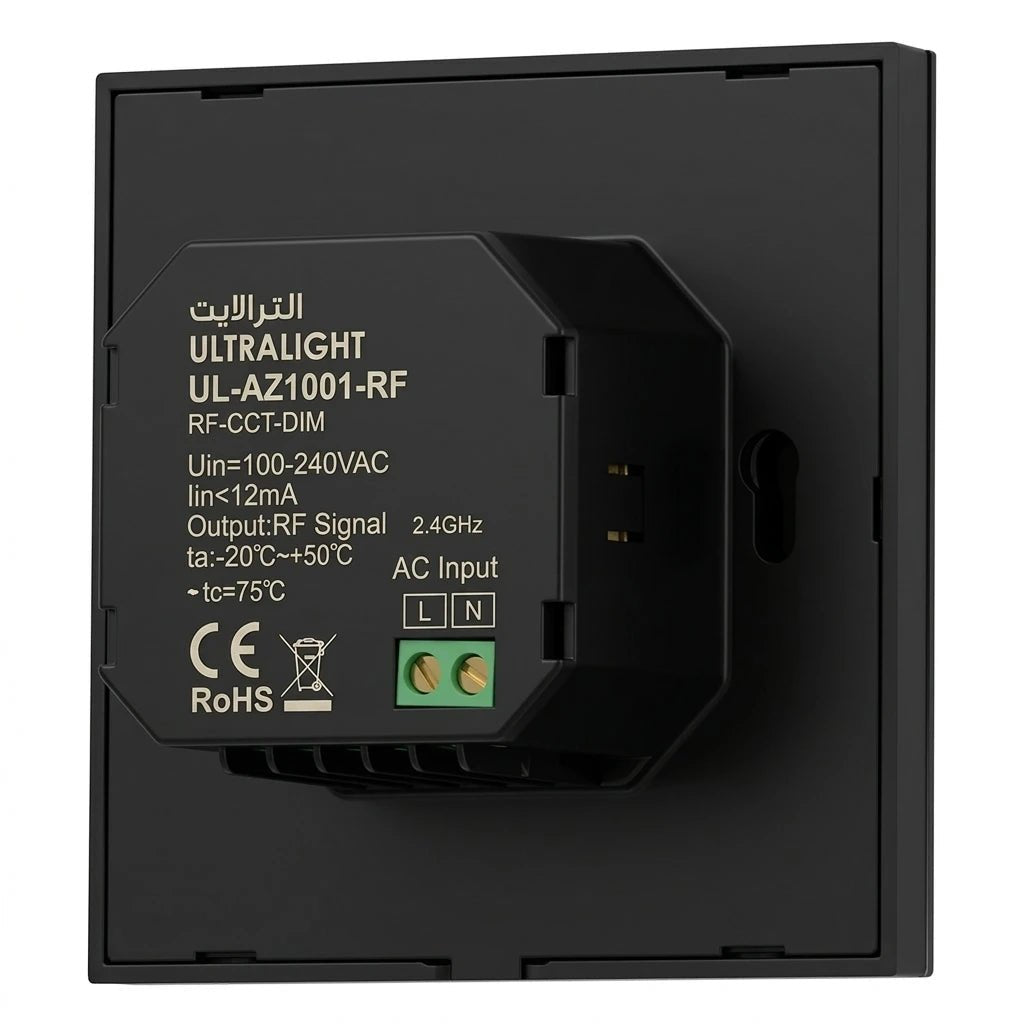

Technical Specifications

•
  Input Voltage: 100–240VAC

•
  Frequency: 50/60Hz

•
  Protocol: RF 2.4G

•
  Transmission Frequency: 2.4GHz

•
  Range: up to 30 meters

•
  Zones: 3 + ALL

•
  Protection: IP20

•
  Operating Temperature: -20°C to 50°C


Mechanical Data

•
  Material: Polycarbonate

•

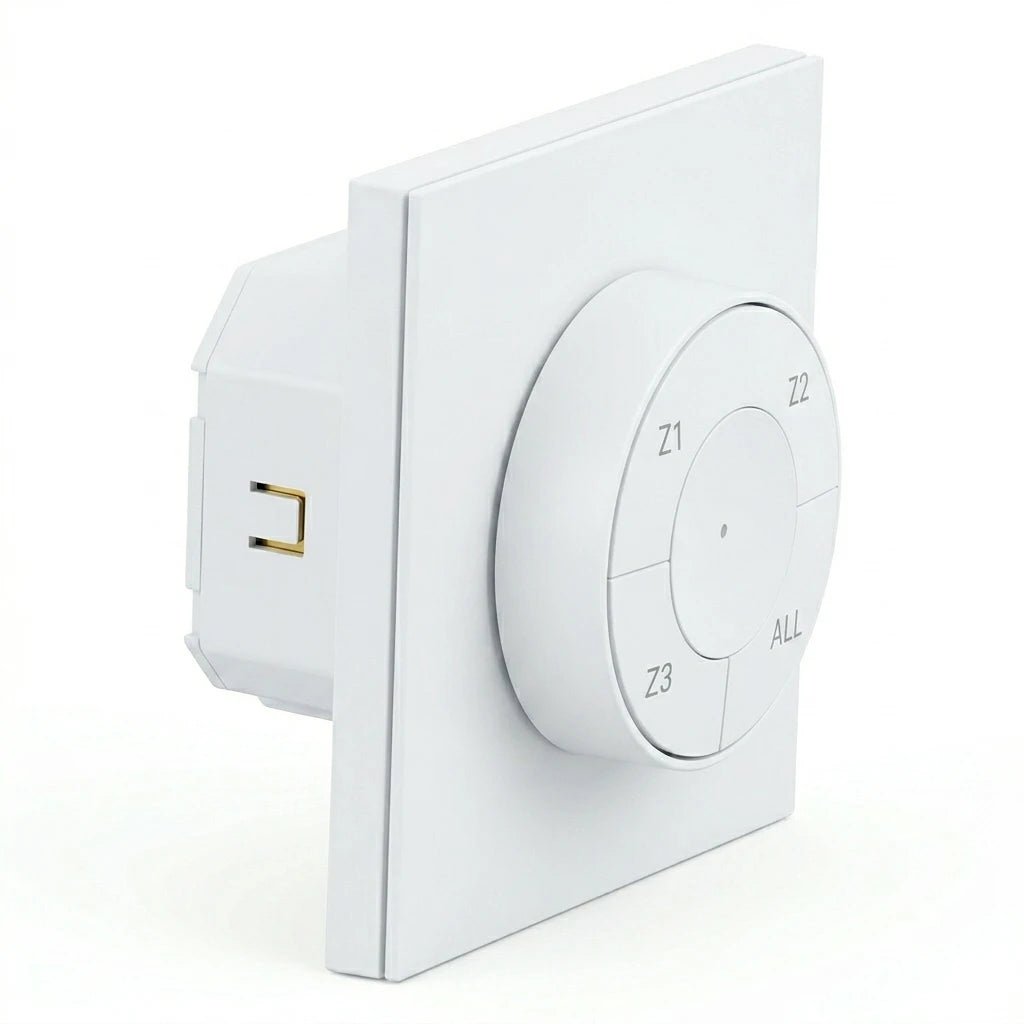

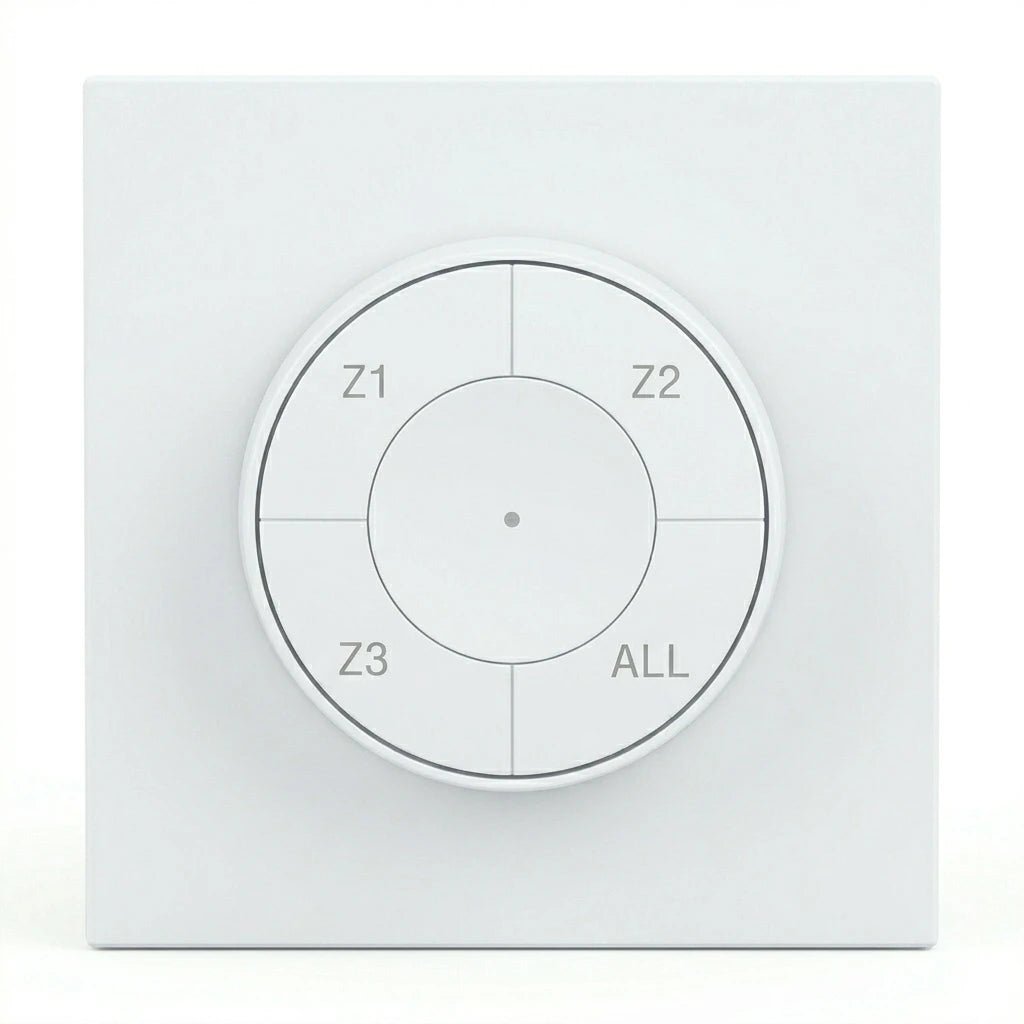

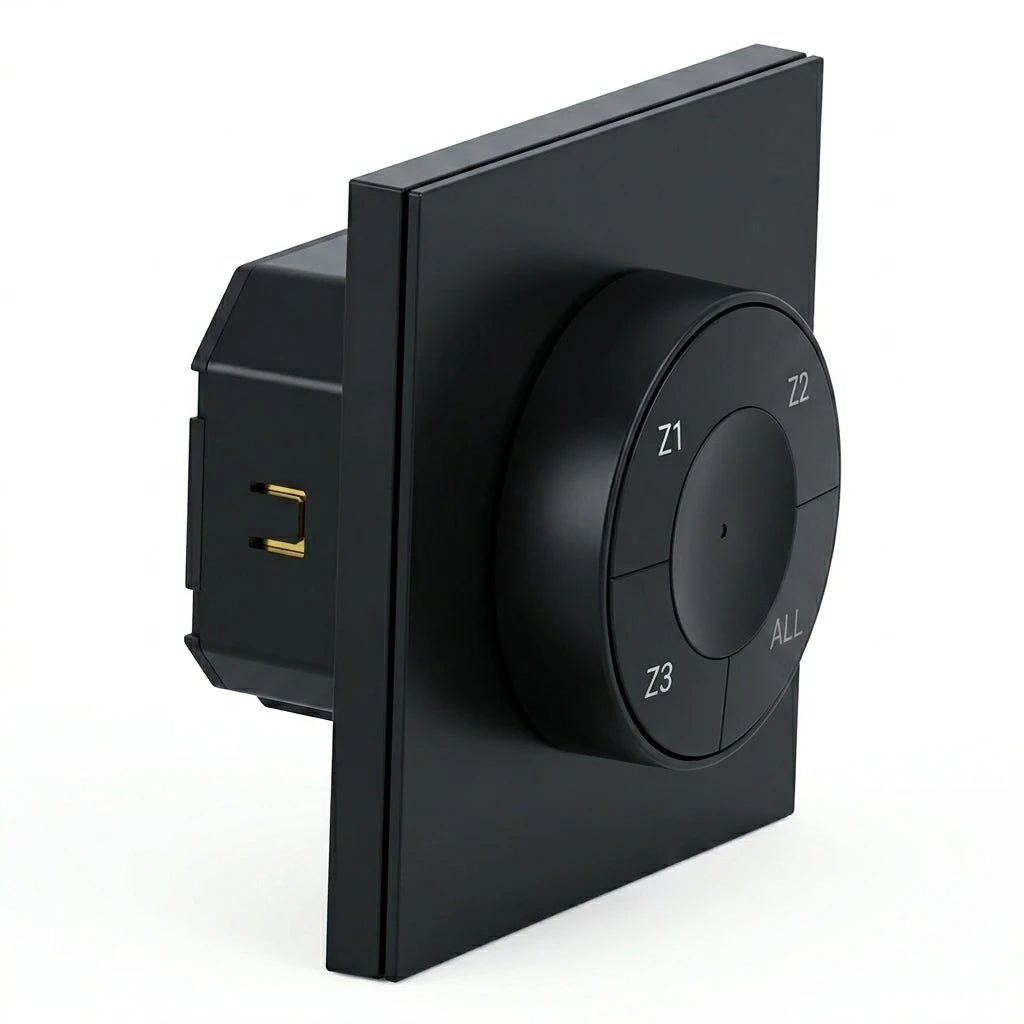

  Colors: White / Black

•
  Wall-mounted modern design


Dimensions

•
  Front size: 86 × 86 mm

•
  Depth: 52.3 mm approx.

•
  Additional dimensions included

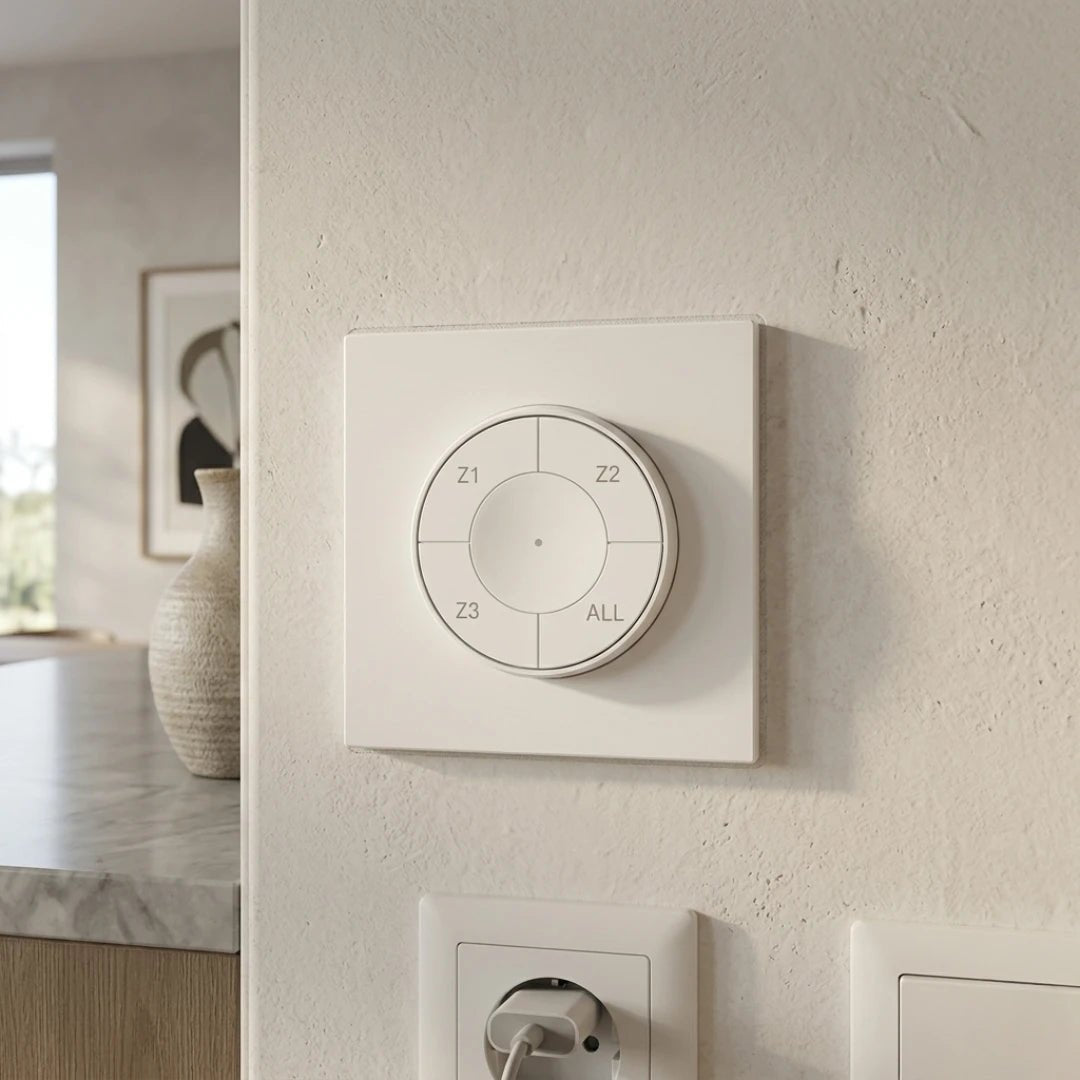

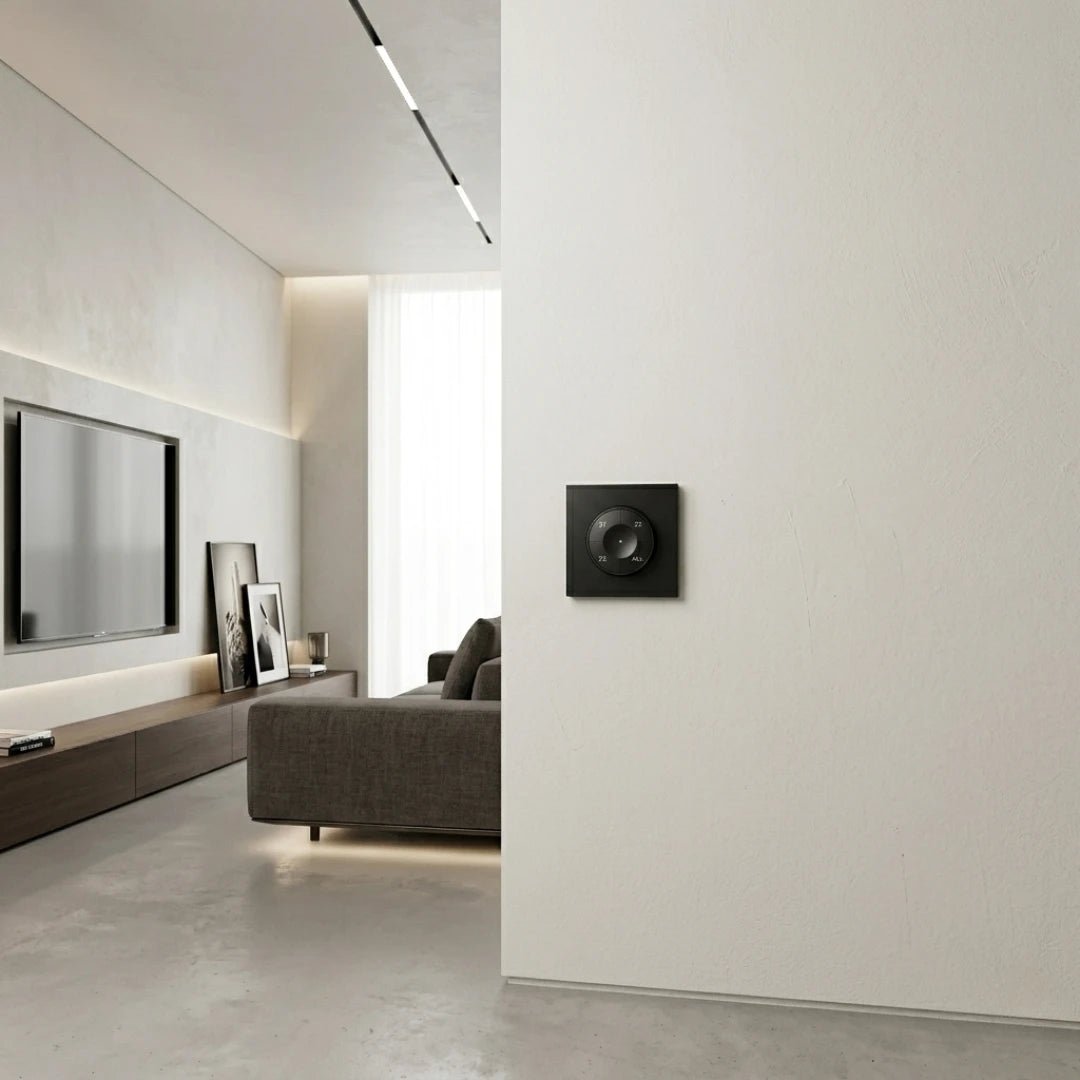

Applications

•
  Smart homes

•
  Bedrooms & living rooms

•
  Offices

•
  Retail & showrooms

•
  Decorative lighting systems


Why Choose UL-AZ1002-PB?

•
  Easy and intuitive smart control

•
  Multi-zone lighting management

•
  Supports dimming and CCT

•
  Reliable wireless performance

•
  Elegant wall design

•
  5-year warranty
