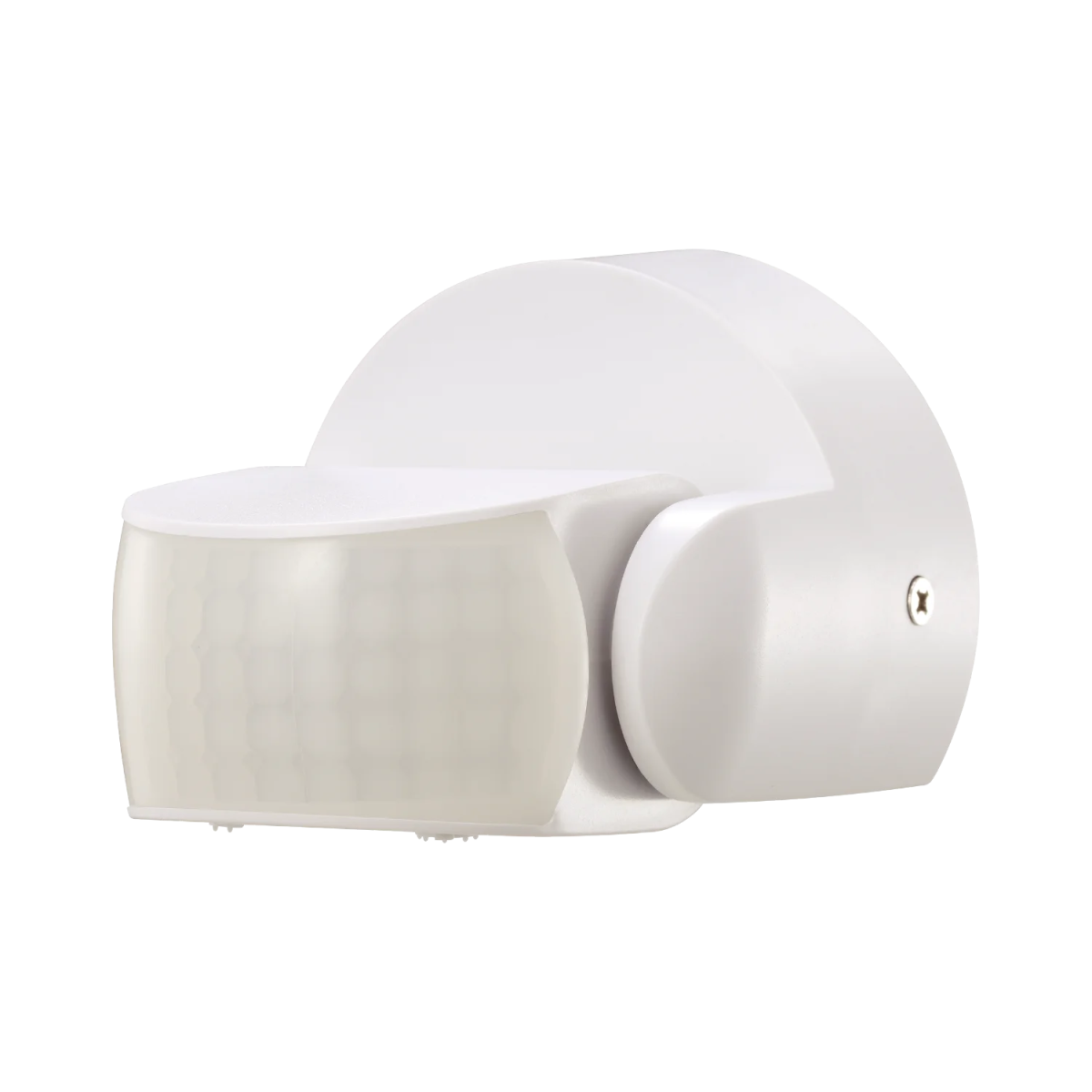

INFRARED MOTION SENSOR (ST15B) – High Sensitivity & Efficiency

The Infrared Motion Sensor (ST15B) is equipped with a 180° motion detection angle and a 180° rotating joint, allowing flexible positioning for optimal coverage in outdoor spaces such as private villas, parking areas, parks, squares, and open yards. It utilizes infrared energy from human movement as a control signal source, enabling automatic activation of the lighting when someone enters the detection field. Additionally, it can automatically distinguish between day and night for enhanced efficiency.

Key Features of Motion Sensor (ST15B):

✔ 180° detection angle with a 180° rotating joint for optimal positioning.
✔ Supports up to 600W LED load.
✔ Durable polycarbonate housing for long-lasting performance.
✔ Precise motion detection up to 12 meters.
✔ Adjustable ambient light sensitivity from 3 to 2000 lux.
✔ Customizable delay time from 10 seconds to 12 minutes.
✔ Detects motion speeds between 0.6 - 1.5 m/s.
✔ Weather-resistant with IP65 rating, ideal for outdoor use.
✔ Energy-saving design with automatic light response.
✔ 5-year warranty.

Technical Specifications:

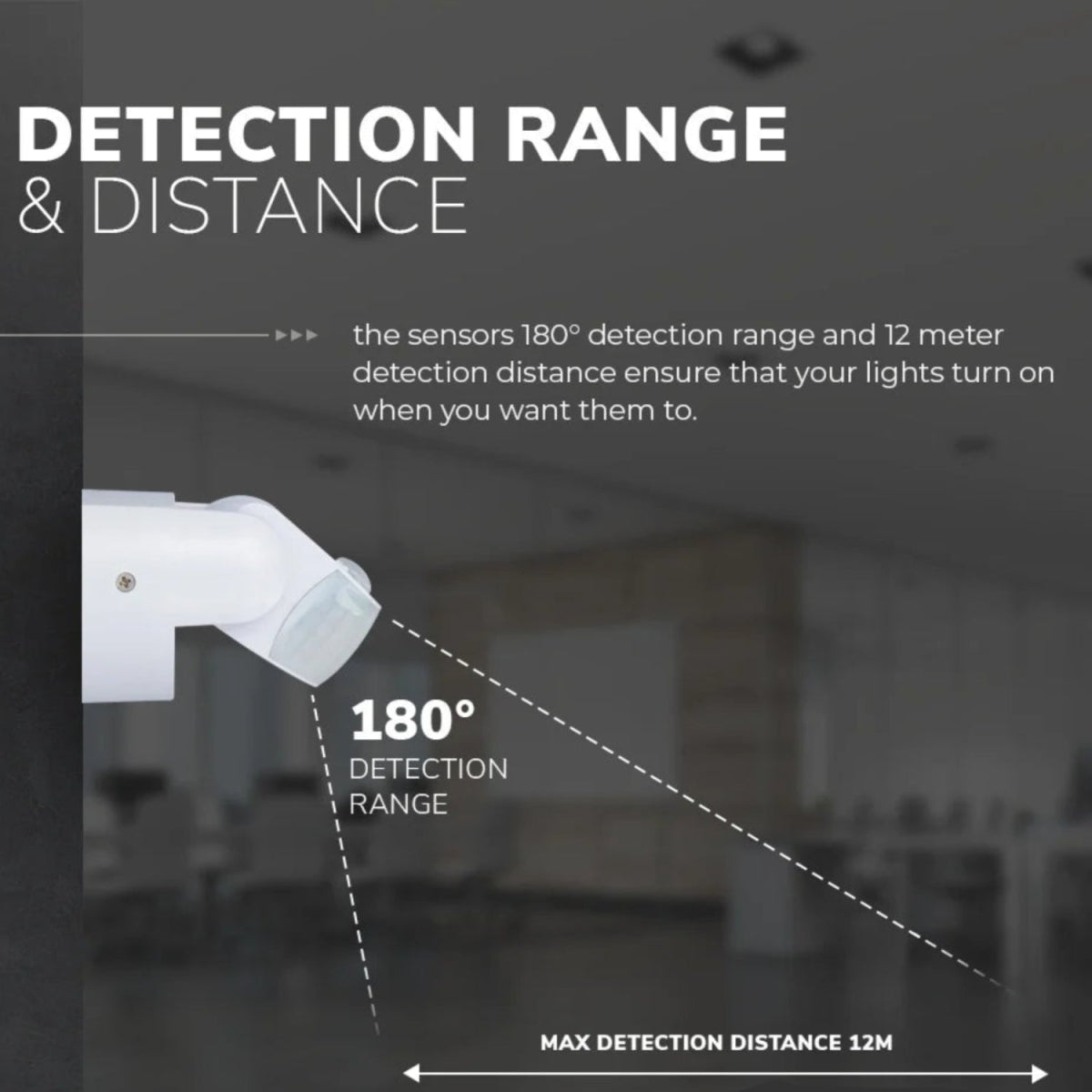

• Detection Angle: 180°

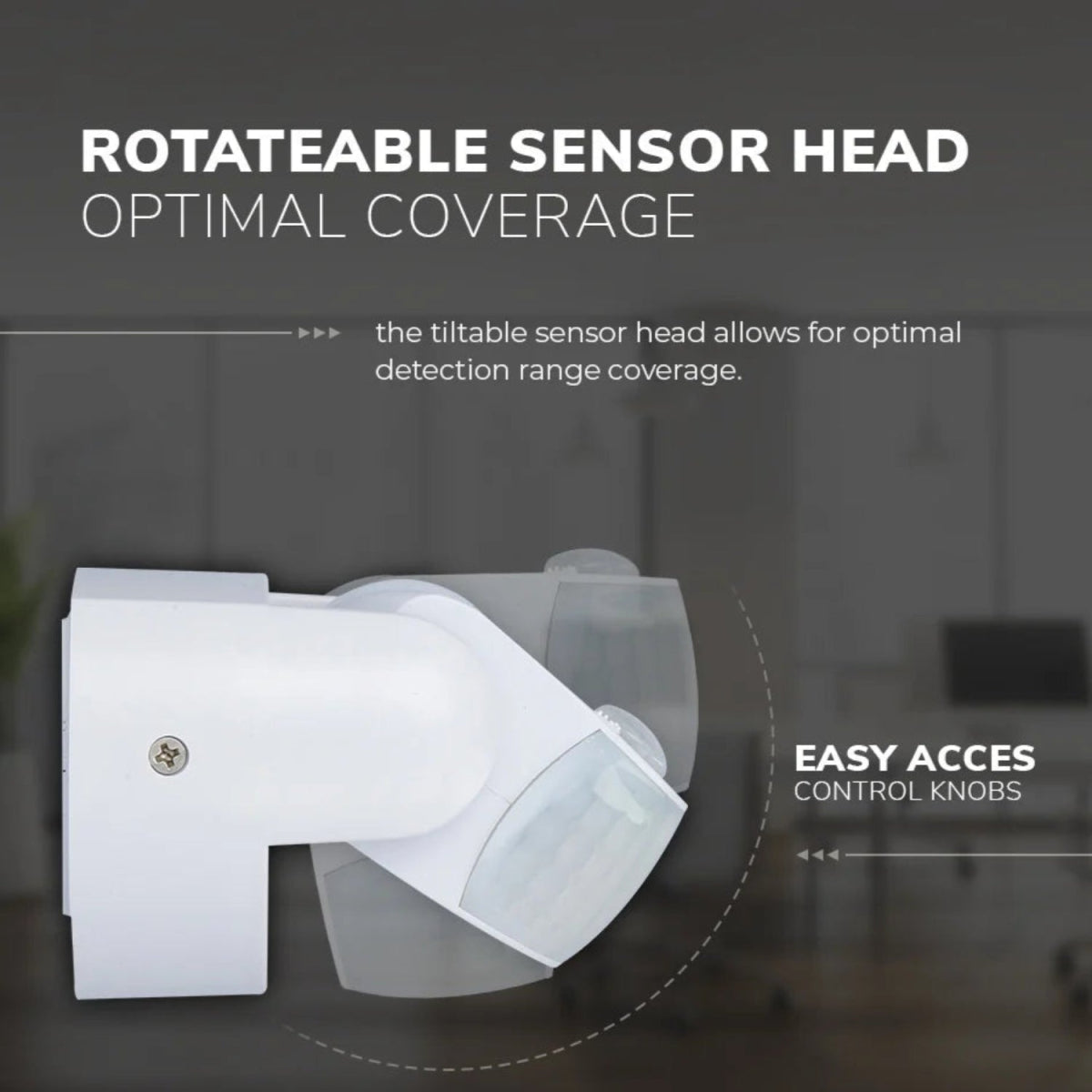

• Rotating Joint: 180°
• Max Power Load: 600W LED
• Detection Distance: <12 meters
• Installation Height: 1.8 - 2.5 meters
• Motion Detection Speed: 0.6 - 1.5 m/s

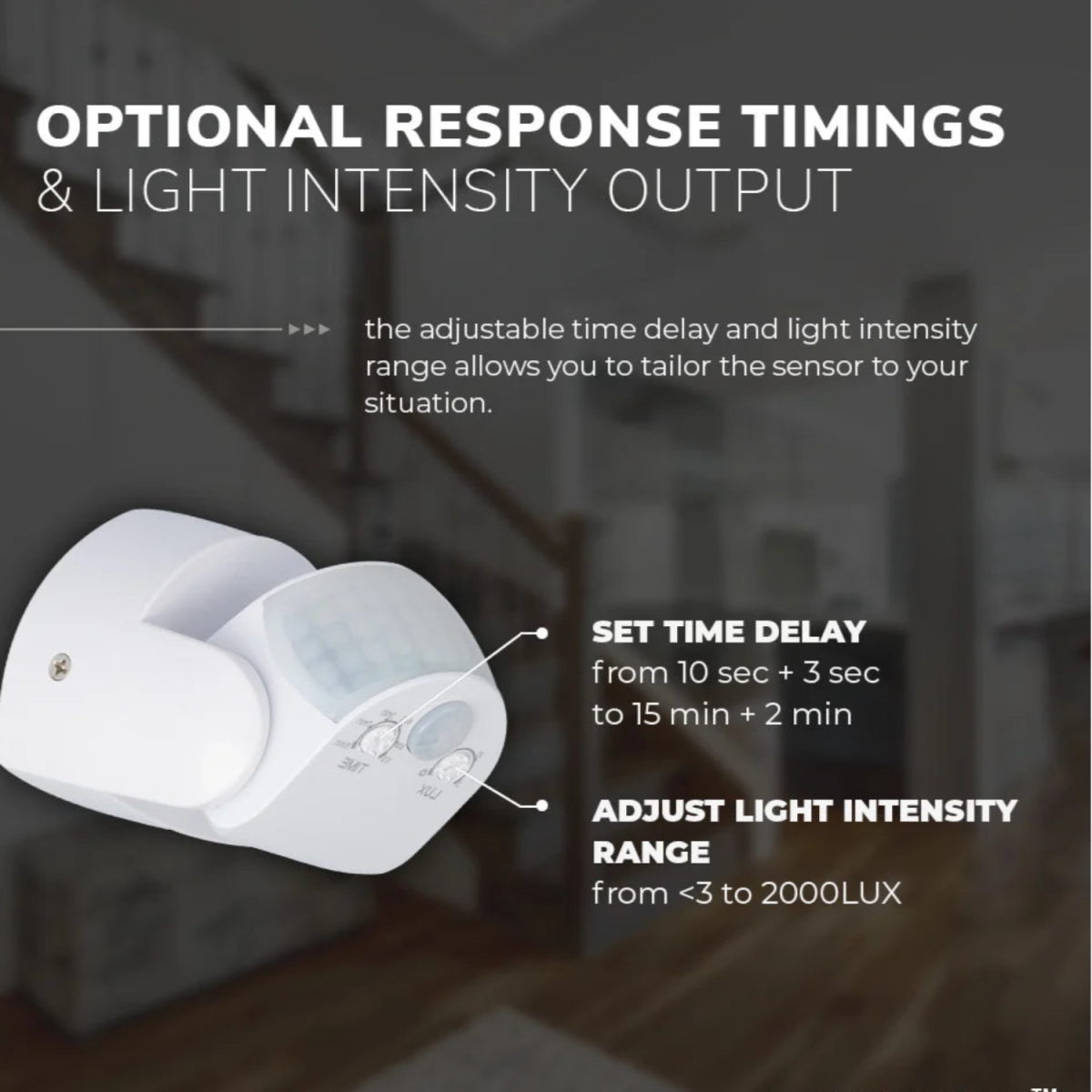

• Ambient Light Sensitivity: 3 - 2000 lux (adjustable)
• Delay Time: 10 seconds to 12 minutes (adjustable)
• IP Rating: IP65 (weather-resistant)
• Product Color: White

How to Purchase INFRARED MOTION SENSOR (ST15B)

Order the Infrared Motion Sensor (ST15B) now from Ultra Light’s online store and enjoy fast delivery and multiple payment options. For further details, contact our customer service team.
