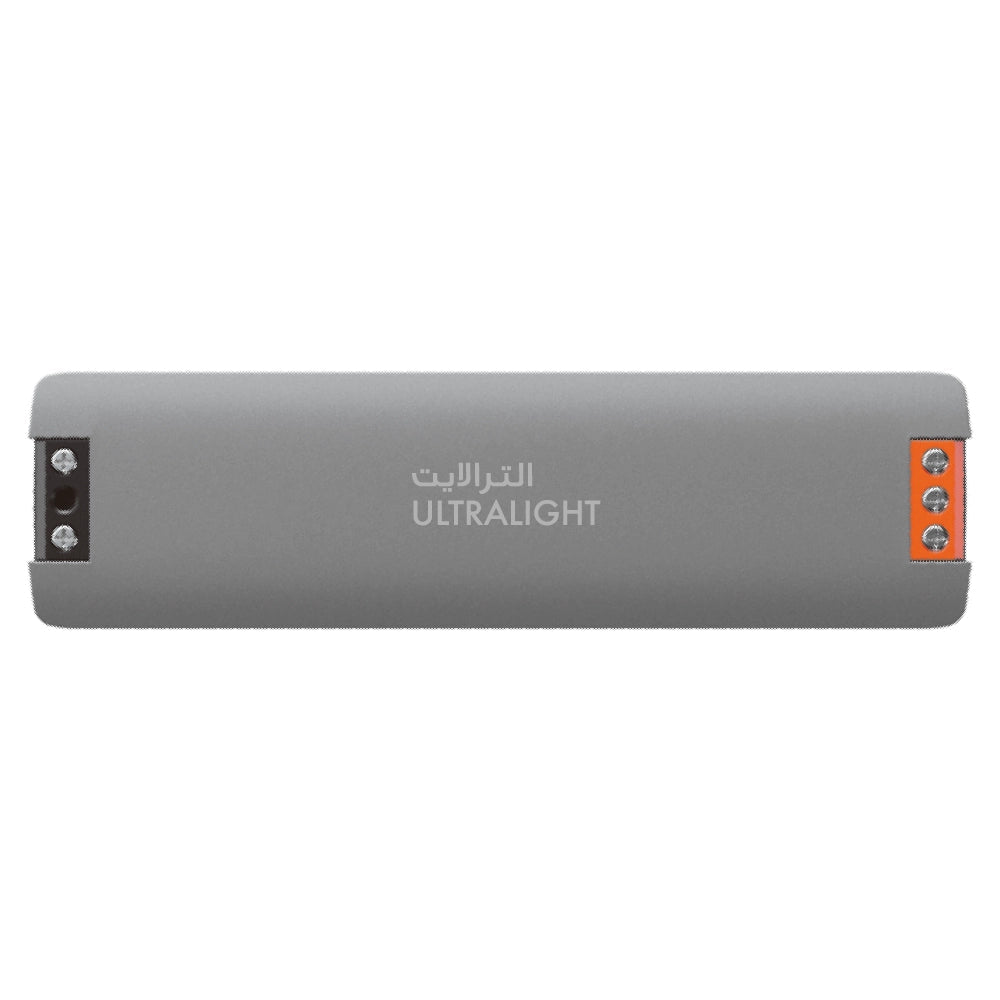

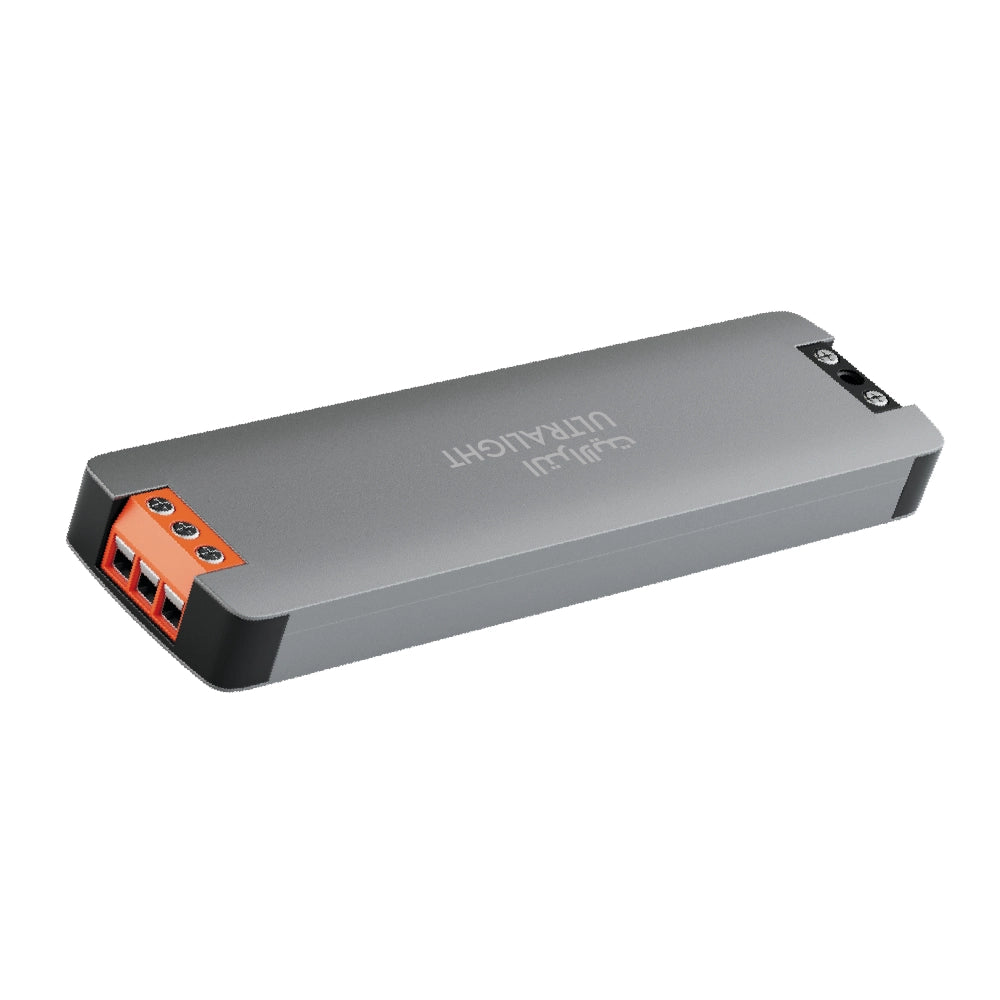

LED Power Supply combines a compact, ultra-thin design with reliable power delivery, making it a practical solution for compatible 24V LED lighting systems. With a slim profile measuring just 13 mm in thickness, it is especially suitable for installations where space is limited.

Delivering 100W of power, the unit provides a constant 24V DC output at 4.1A and supports direct connection to compatible LED light sources. It operates with an input voltage of 180–265V AC at 50/60Hz, providing a suitable power source for indoor LED lighting applications.

The durable heavy-duty aluminum housing features a grey finish and compact dimensions of 123 × 34 × 13 mm, allowing convenient surface-mounted installation. With a rated efficiency of 91%, the power supply is designed to operate in temperatures ranging from -20°C to +50°C.

Designed for indoor use, the XZ-100W offers a practical combination of compact size, durable construction, and efficient power delivery, backed by a 2-year warranty.

Key Features

• 100W power output.
• Constant 24V DC output.
• 4.1A output current.
• Ultra-thin 13 mm profile.
• Durable heavy-duty aluminum housing.
• Suitable for surface-mounted installation.
• Direct connection to compatible LED light sources.
• 91% rated efficiency.
• Designed for indoor use.
• 2-year warranty.

Technical Specifications

• Model: XZ-100W
• Wattage: 100W
• Input Voltage: 180–265V AC
• Frequency: 50/60Hz
• Output Voltage: 24V DC
• Input Current: 0.5A
• Output Current: 4.1A
• Rated Efficiency: 91%
• Power Factor: 0.5
• Housing Material: Heavy-Duty Aluminum
• Color: Grey
• Dimensions: 123 × 34 × 13 mm
• Operating Temperature: -20°C to +50°C
• Application: Indoor Use
• Warranty: 2 Years
