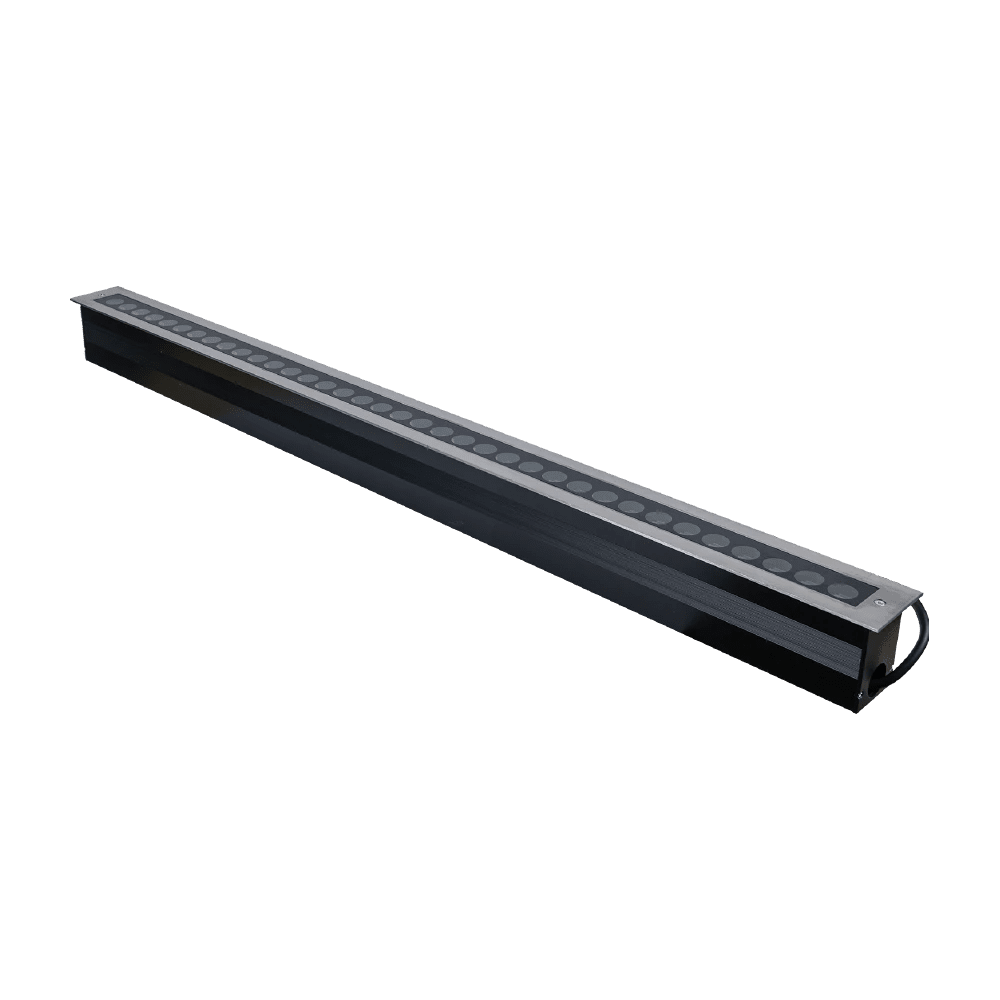

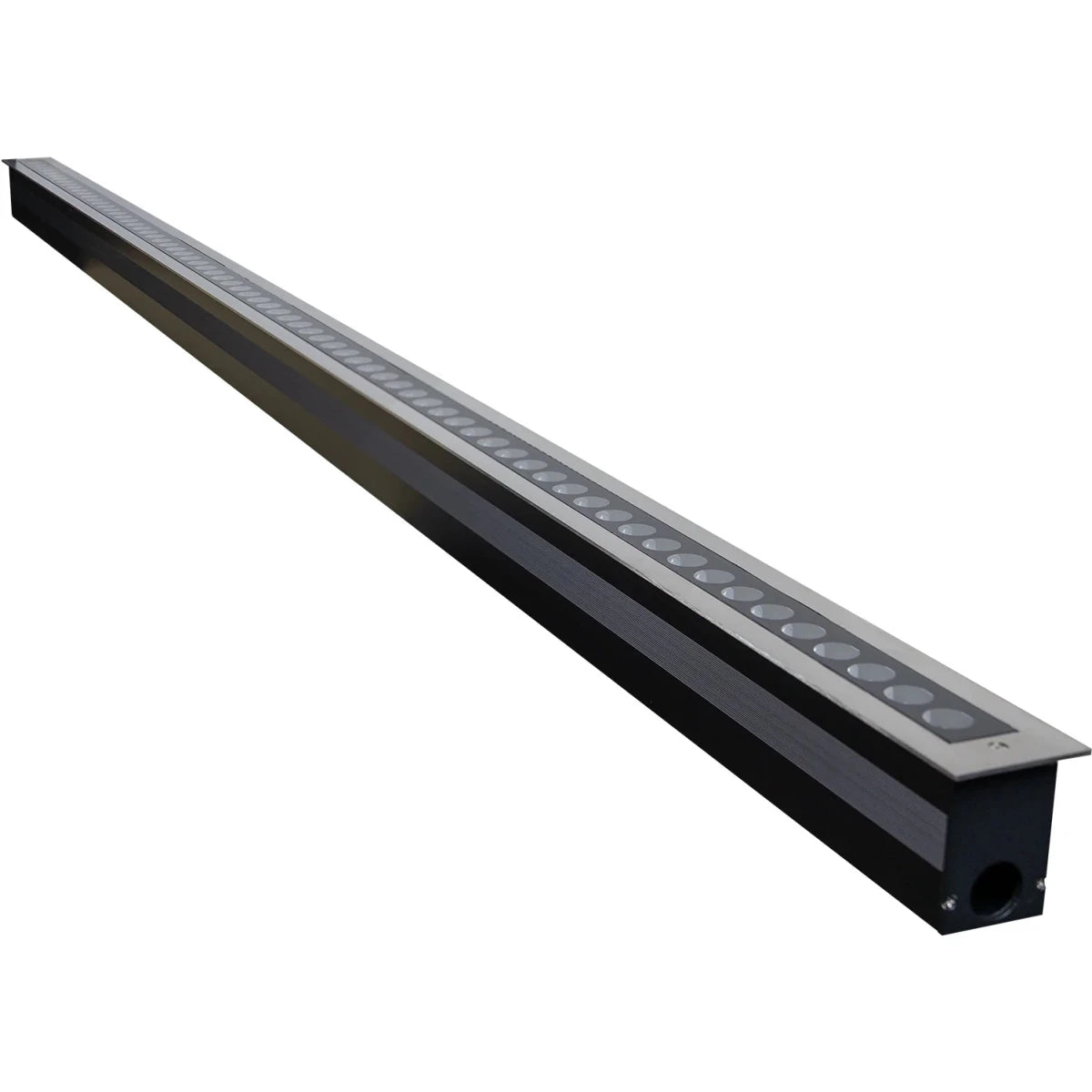

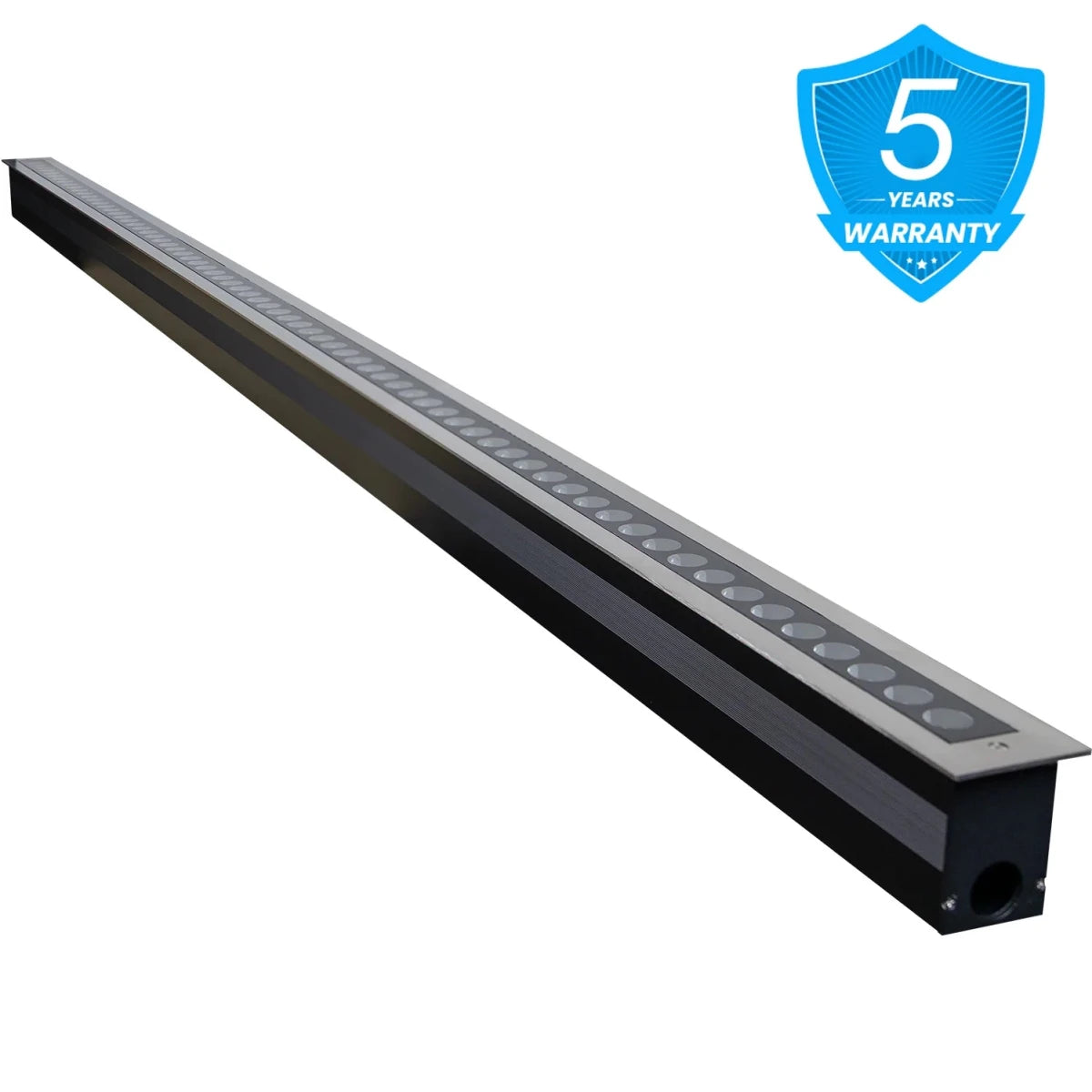

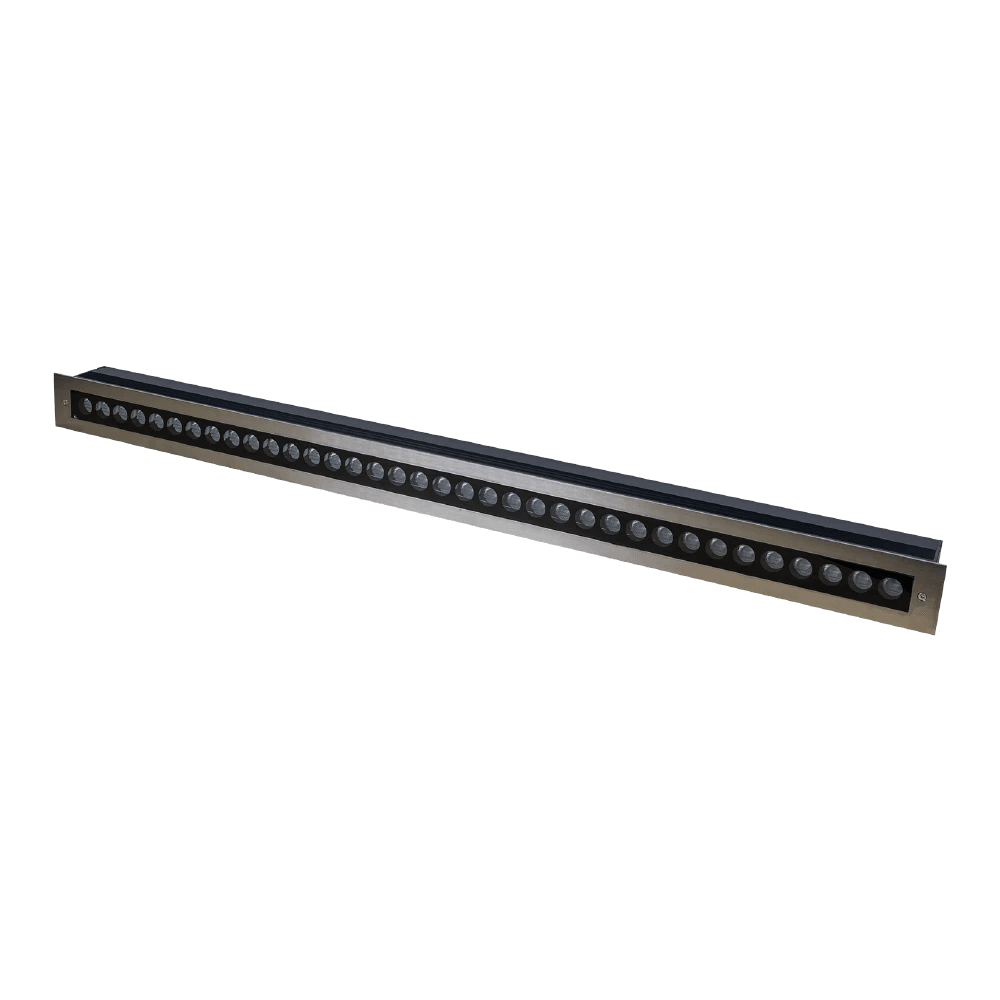

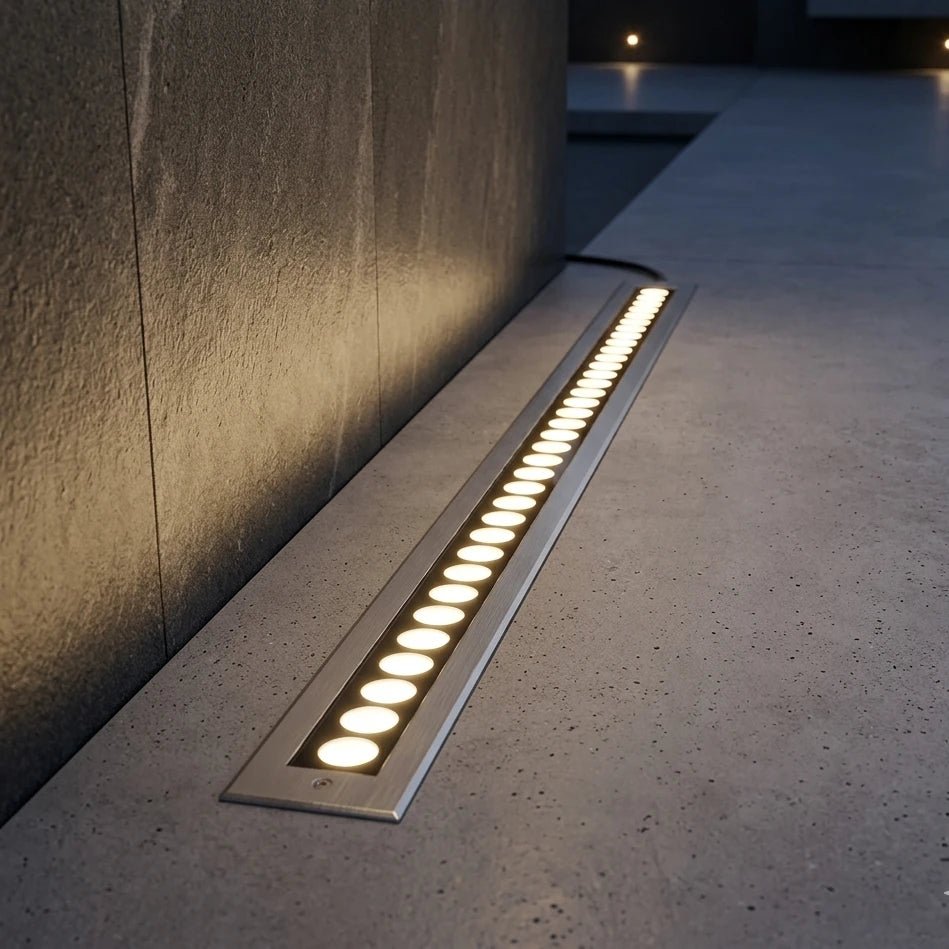

Linear Inground LED Light – WY-UDC13 (32W / 64W)

The WY-UDC13 Linear Inground Light is a premium outdoor lighting solution designed for architectural and landscape applications. With lengths up to 2 meters and power options of 32W and 64W, it delivers powerful and precise illumination for pathways, facades, and outdoor spaces.

Constructed from stainless steel and aluminum, this fixture ensures durability, corrosion resistance, and long-term reliability. It features a clear glass diffuser with patterned lenses for precise and uniform light distribution.

With IP67 protection, the fixture is fully resistant to water and dust, while IK08 impact resistance ensures durability in demanding environments. The 25° beam angle provides focused lighting, ideal for highlighting architectural elements.

Available in 3000K warm white and 4000K neutral white, it offers flexibility for different lighting designs. With a lifespan of up to 50,000 hours, it ensures long-lasting performance.

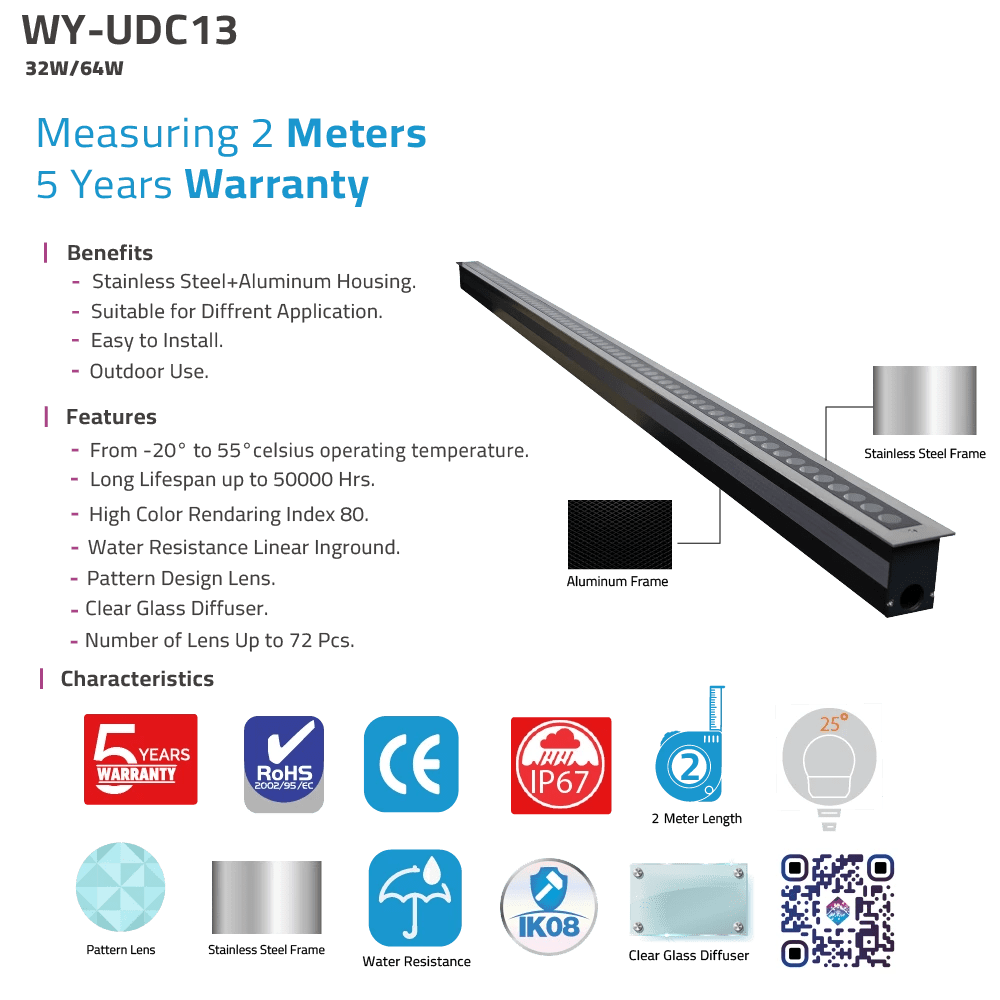

Key Features

•
  Linear design up to 2 meters length

•
  Power options: 32W & 64W

•

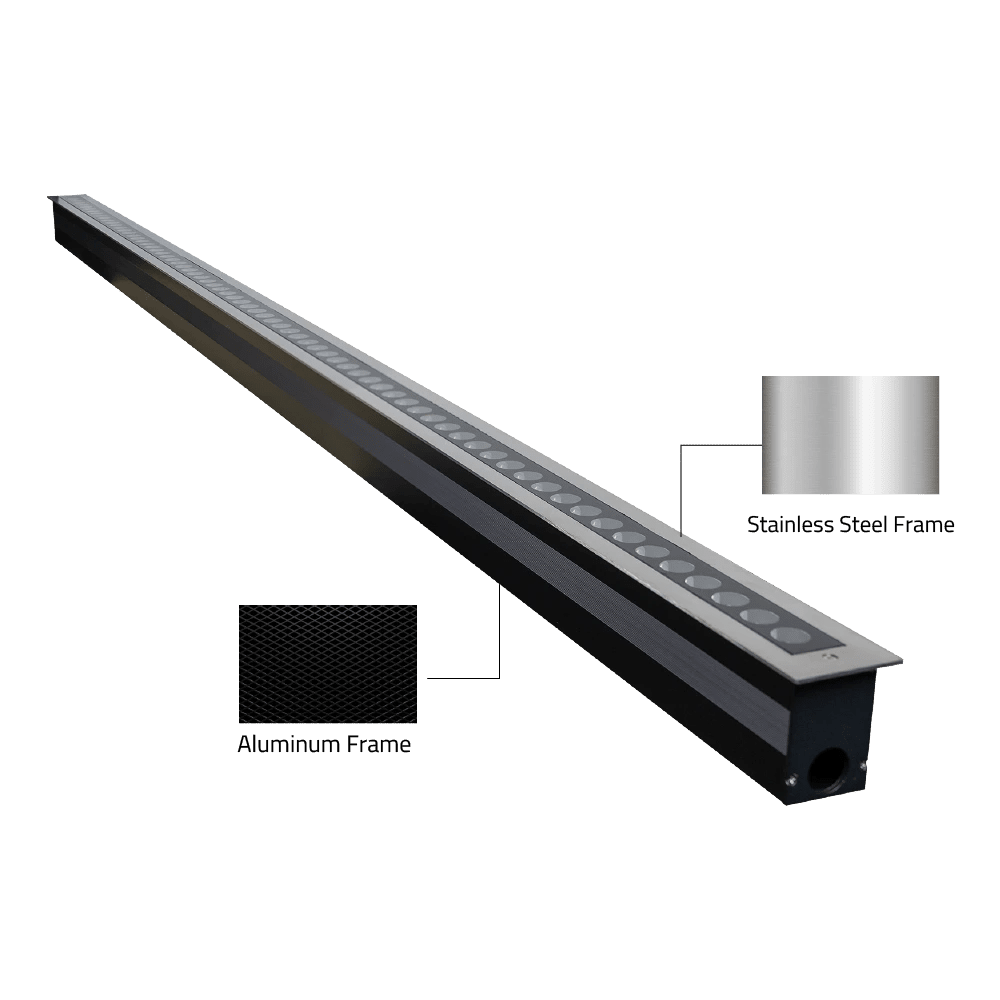

  Stainless steel + aluminum construction

•

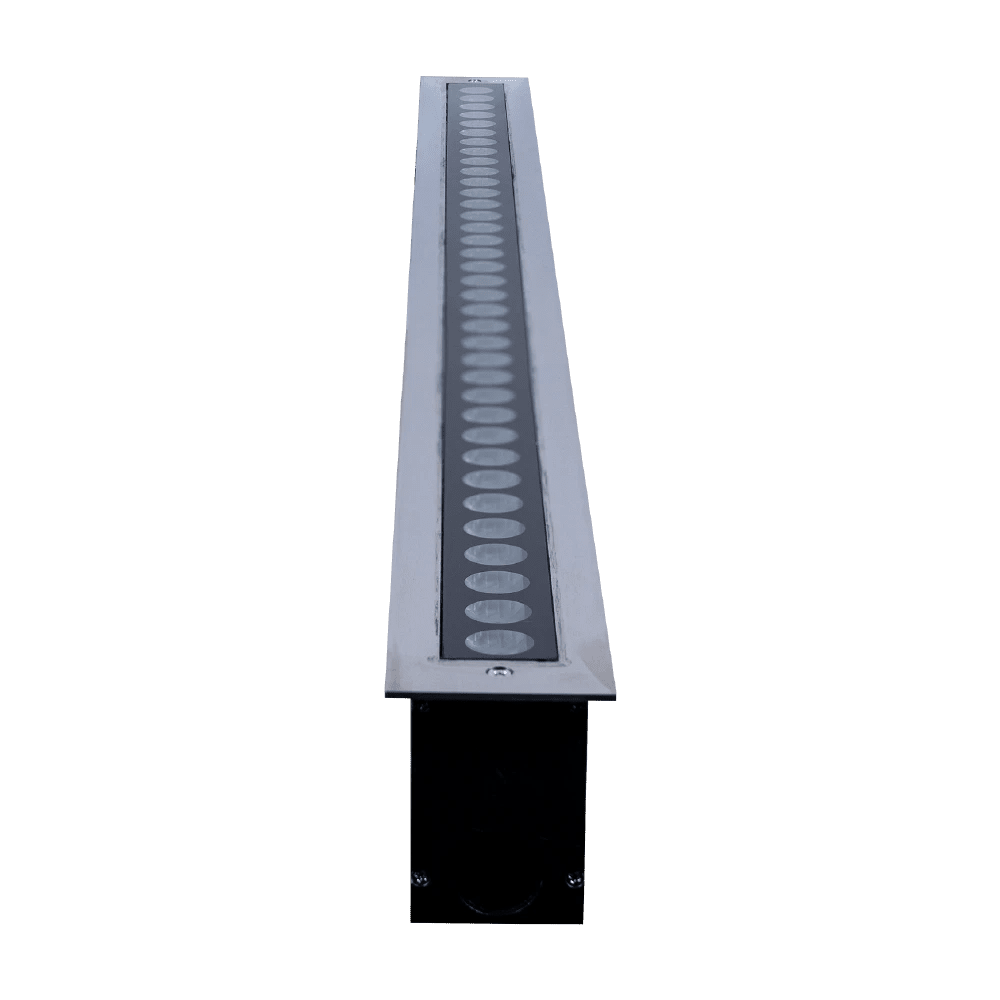

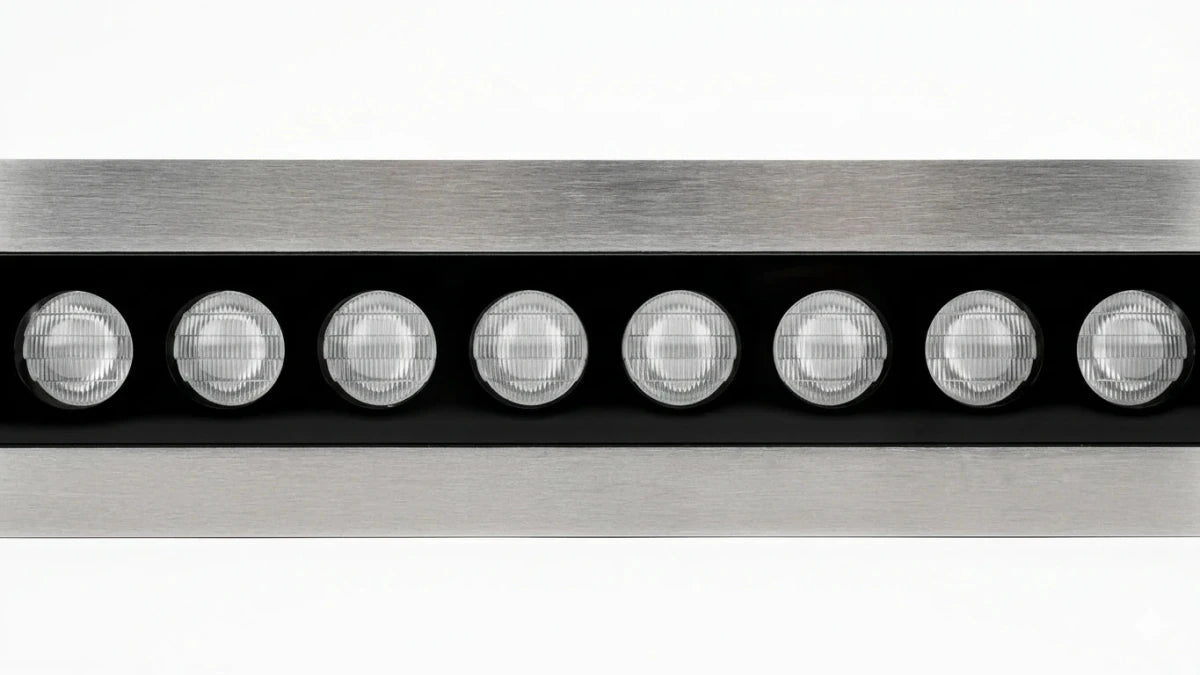

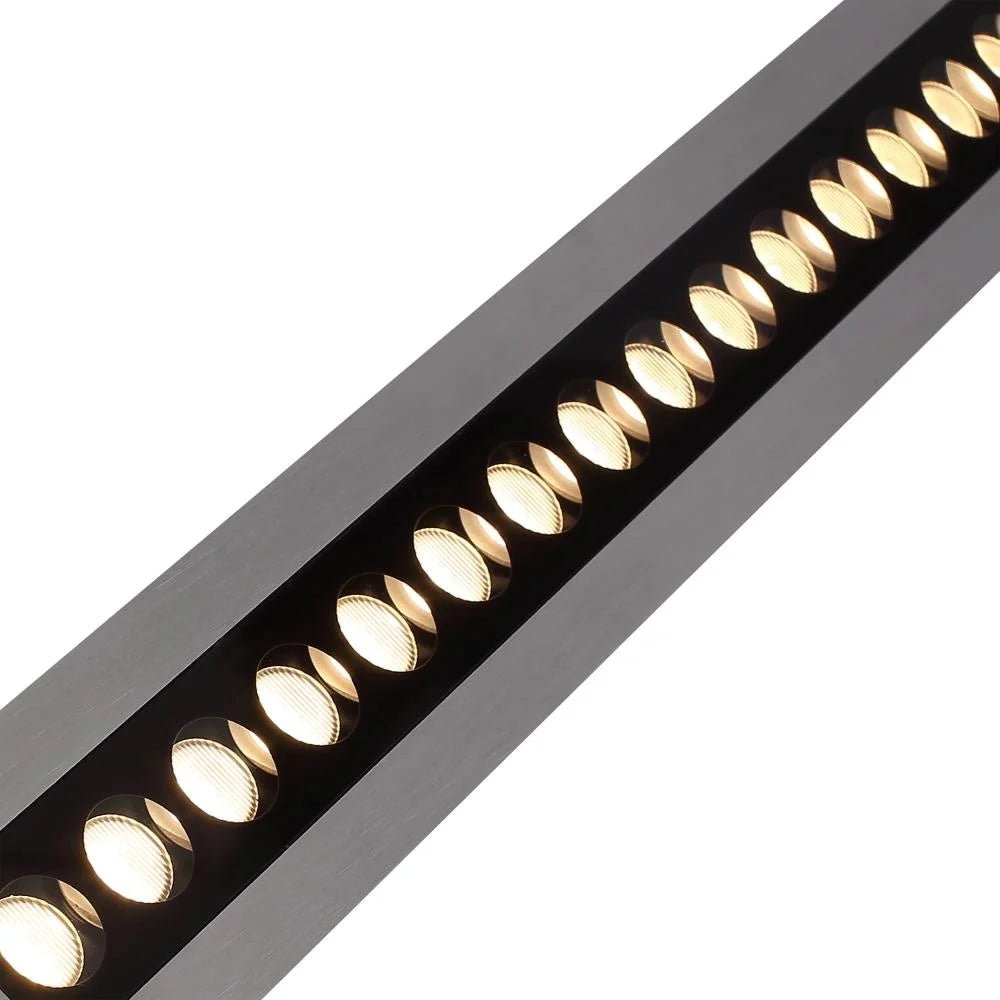

  Clear glass with patterned lens design

•
  Focused 25° beam angle

•
  Up to 3200 lumens output

•

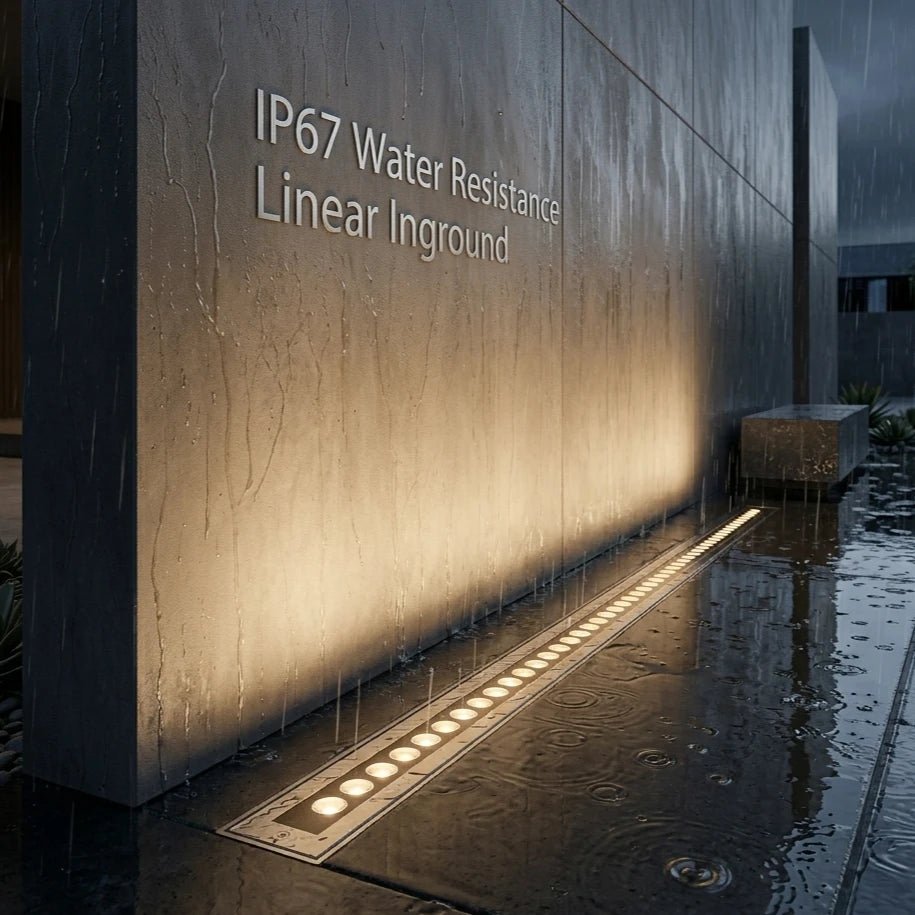

  IP67 waterproof & dustproof

•
  IK08 impact resistance

•
  Long lifespan up to 50,000 hours

•
  Suitable for inground outdoor applications

•
  5-year warranty


Technical Specifications

•
  Voltage: 100–240VAC / 50–60Hz

•
  Power factor: 0.9

•
  CRI: 80

•
  Operating temperature: -20°C to 55°C

•
  Switching cycles: 25,000

•
  Protection class: Class I


Dimensions

•

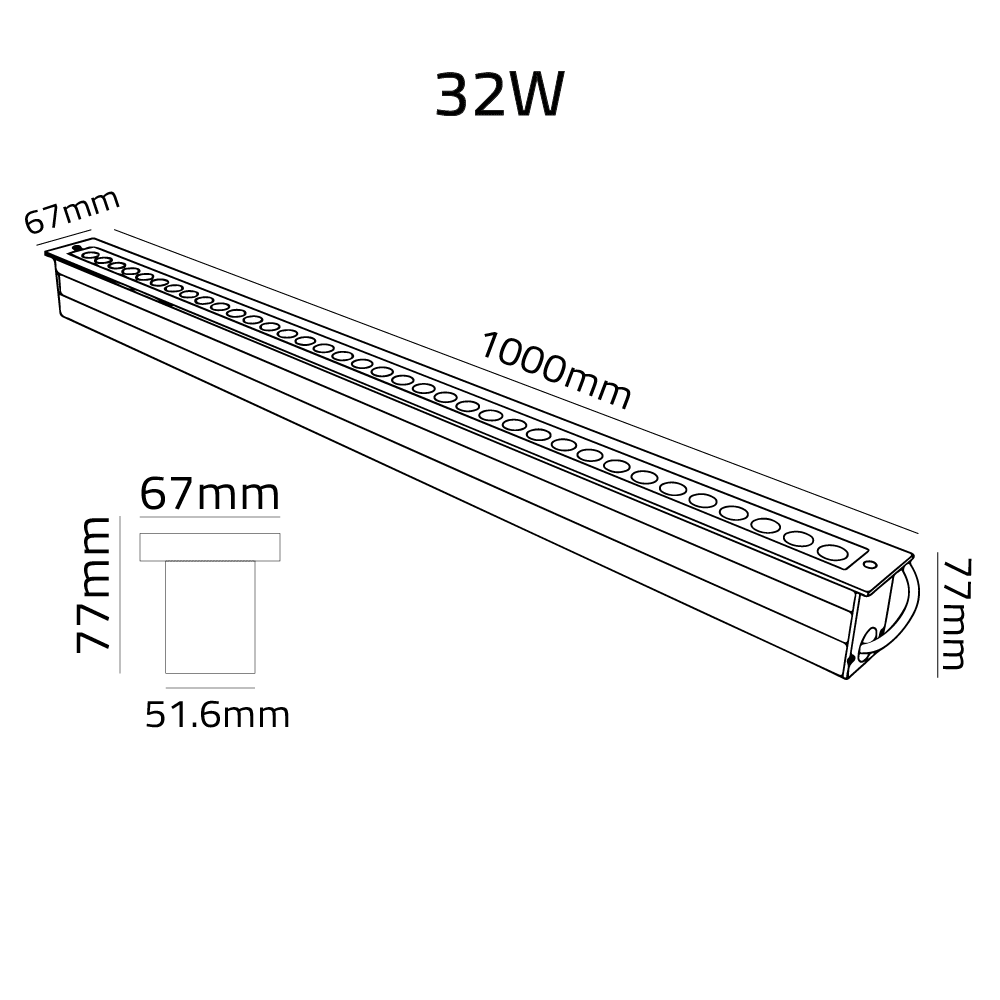

  32W Model:


  Length: 1000 mm


  Width: 67 mm


  Height: 77 mm


  Cut-out: 980 × 51.6 mm



•

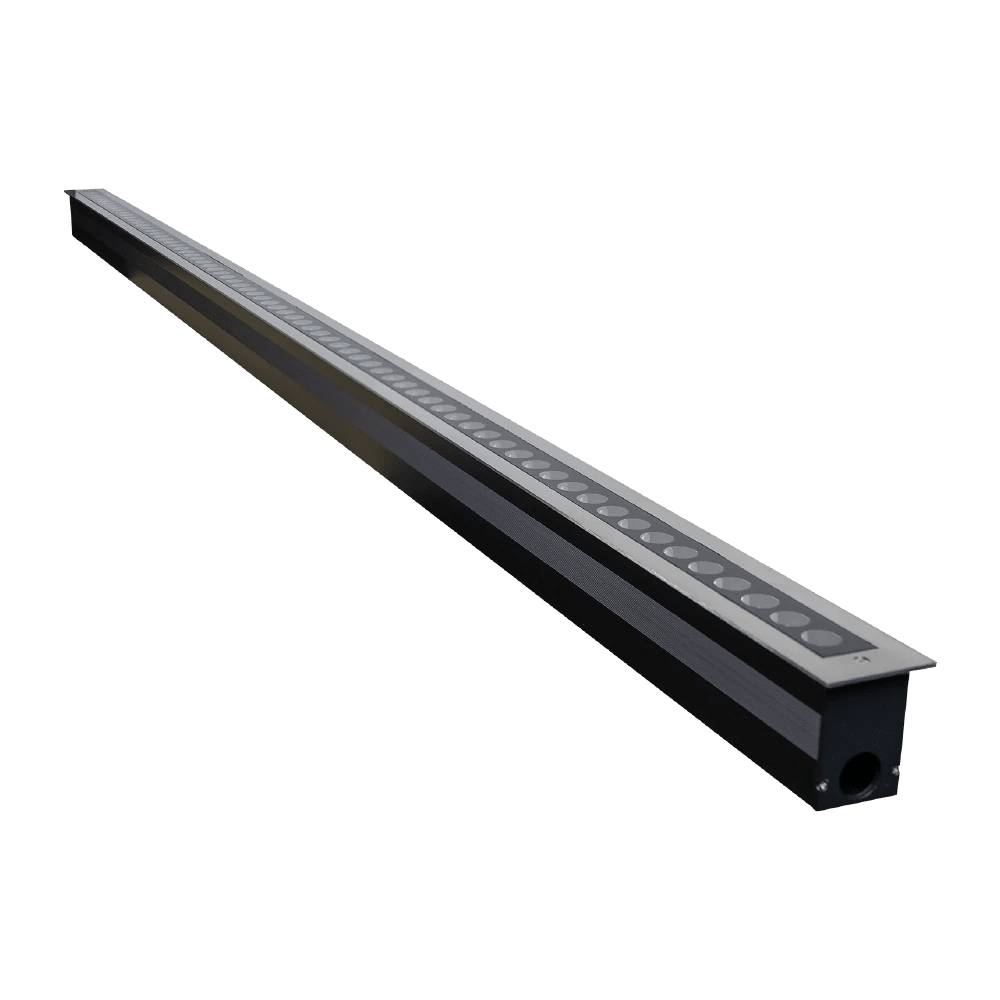

  64W Model:


  Length: 2000 mm


  Width: 67 mm


  Height: 77 mm


  Cut-out: 1980 × 51.6 mm




Applications

•

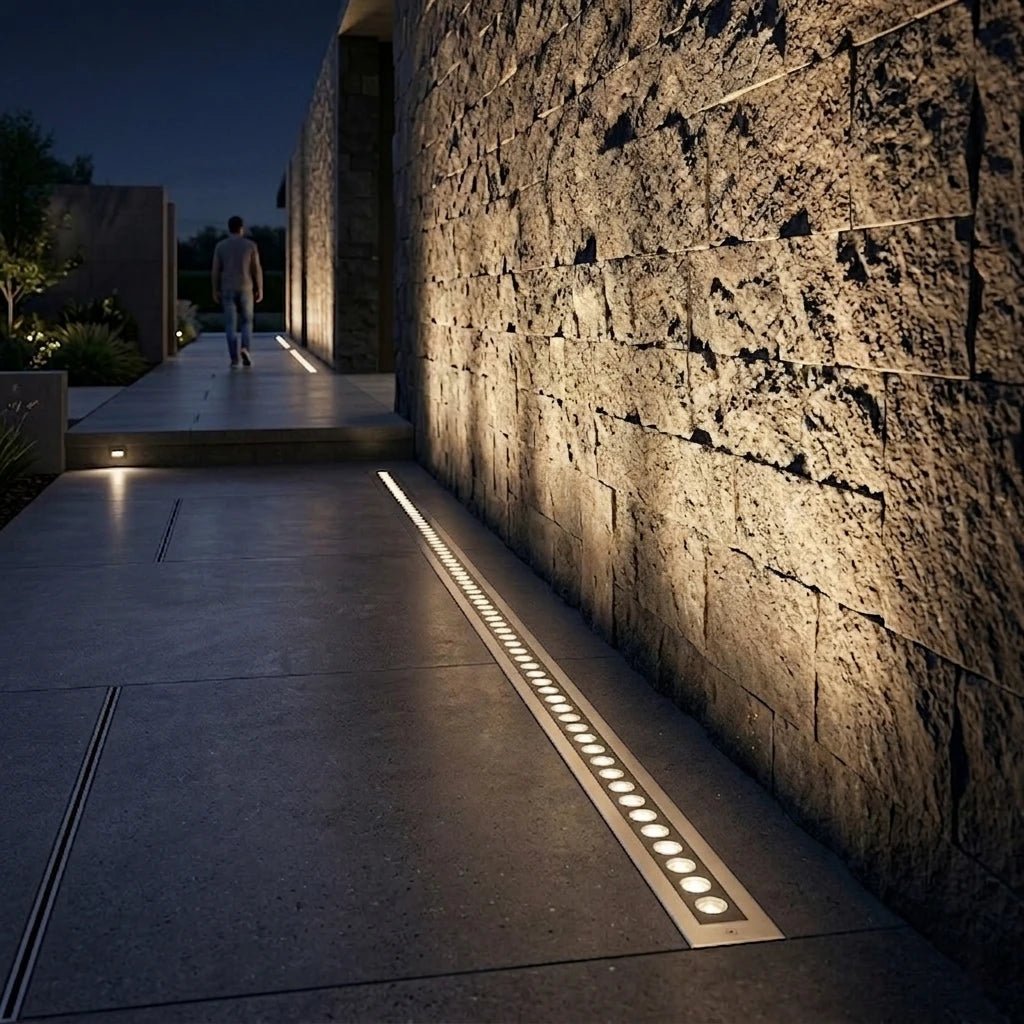

  Pathways and walkways

•
  Gardens and landscapes

•

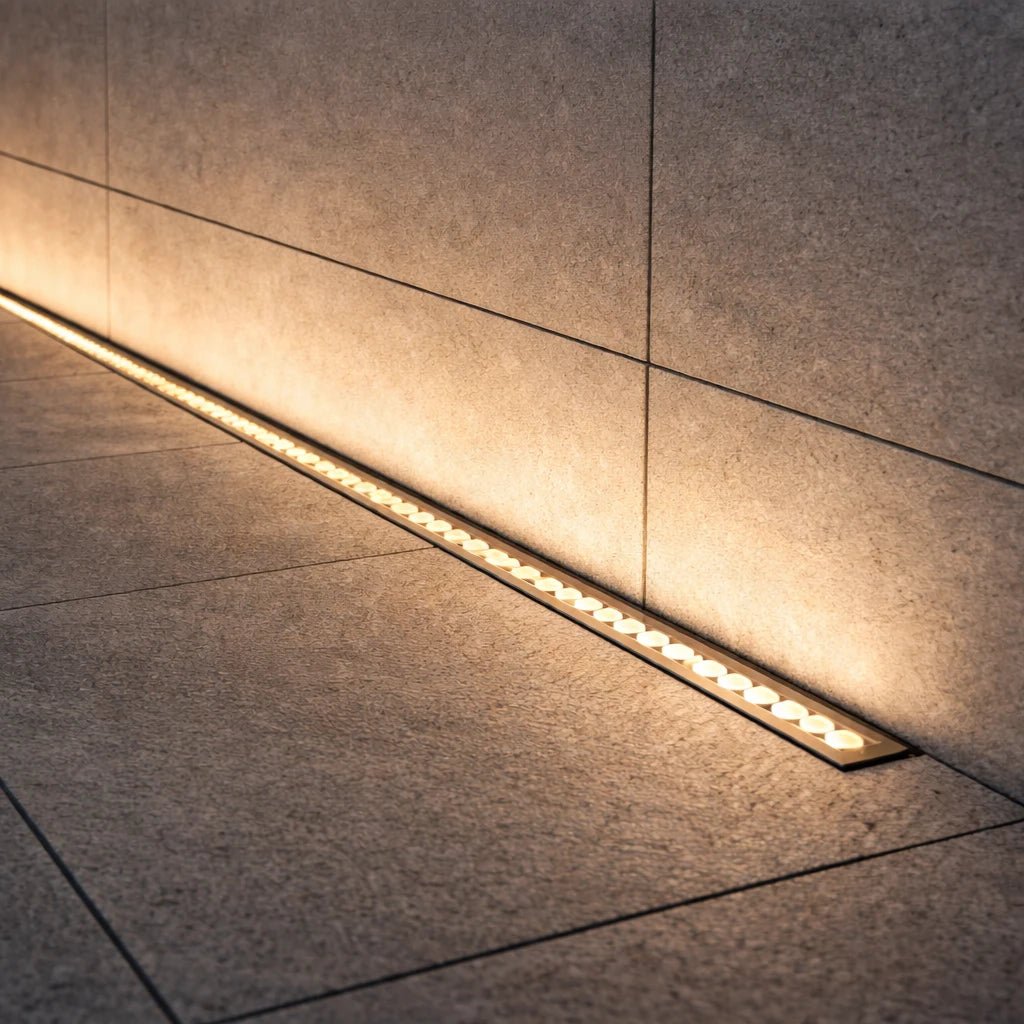

  Building facades

•
  Commercial projects and hotels

•
  Public outdoor areas


Why Choose WY-UDC13?

Because it delivers durability, precision lighting, and architectural elegance, making it ideal for professional outdoor lighting projects.
