ULTRALIGHT A-Z SMART SWITCH with LCD Touch Screen

Model: UL-AZ1002-LCD-PB

The ULTRALIGHT A-Z Smart Switch LCD is an advanced smart lighting controller designed to deliver a seamless and intuitive lighting experience. Featuring a 1.5” LCD touch screen and a smart rotary dial, it allows precise control over brightness and color temperature (CCT).

Powered by RF 2.4G wireless technology, it eliminates complex wiring and enables smooth control of modern lighting systems across multiple zones.

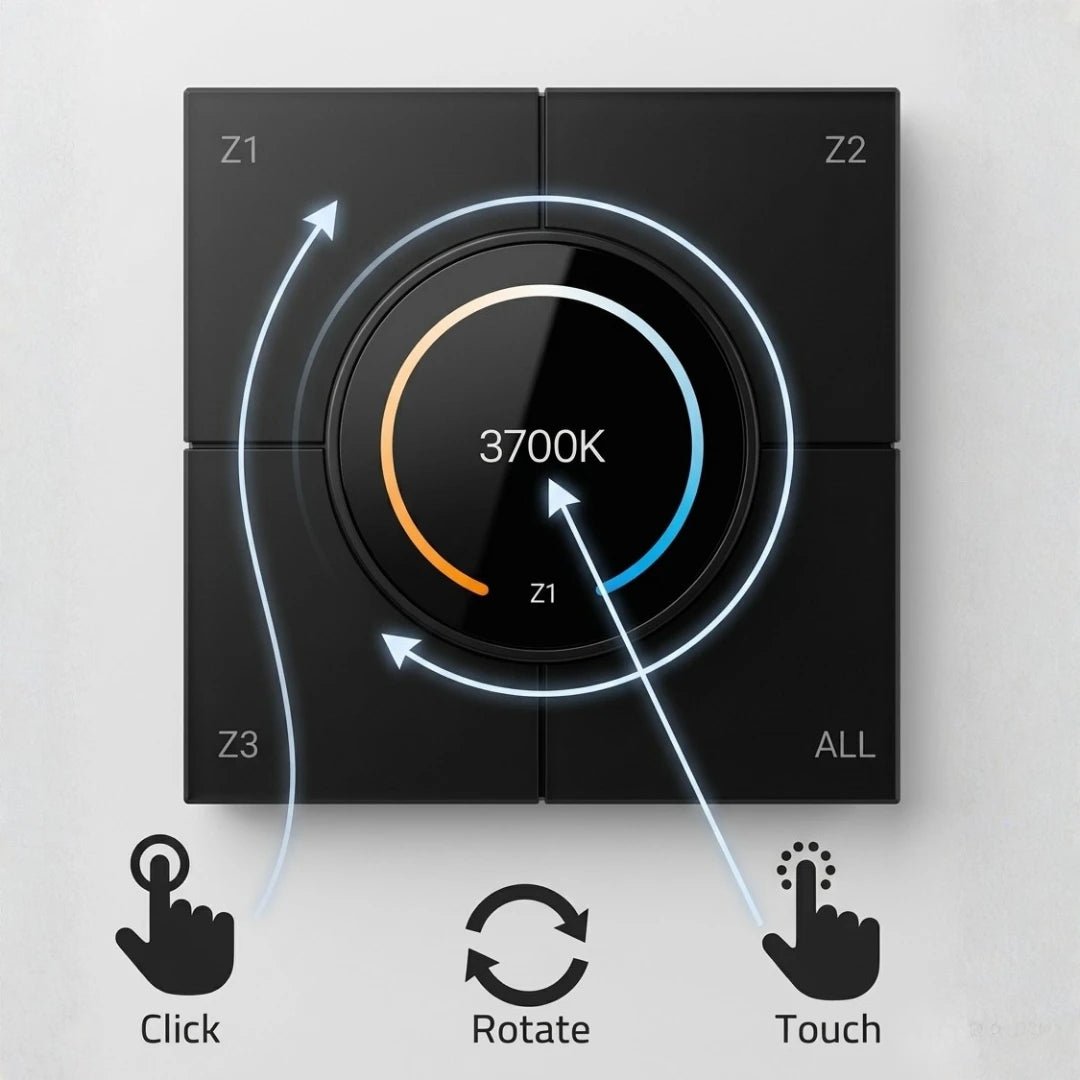

Design & Operation

•
  LCD touch screen (1.5”) displaying brightness and color values

•
  Rotary dial for dimming and adjustments

•
  Zone control buttons:


  Z1 / Z2 / Z3


  ALL (global control)



•
  Real-time display of:


  Brightness (%)


  Color temperature (K)




Core Functions

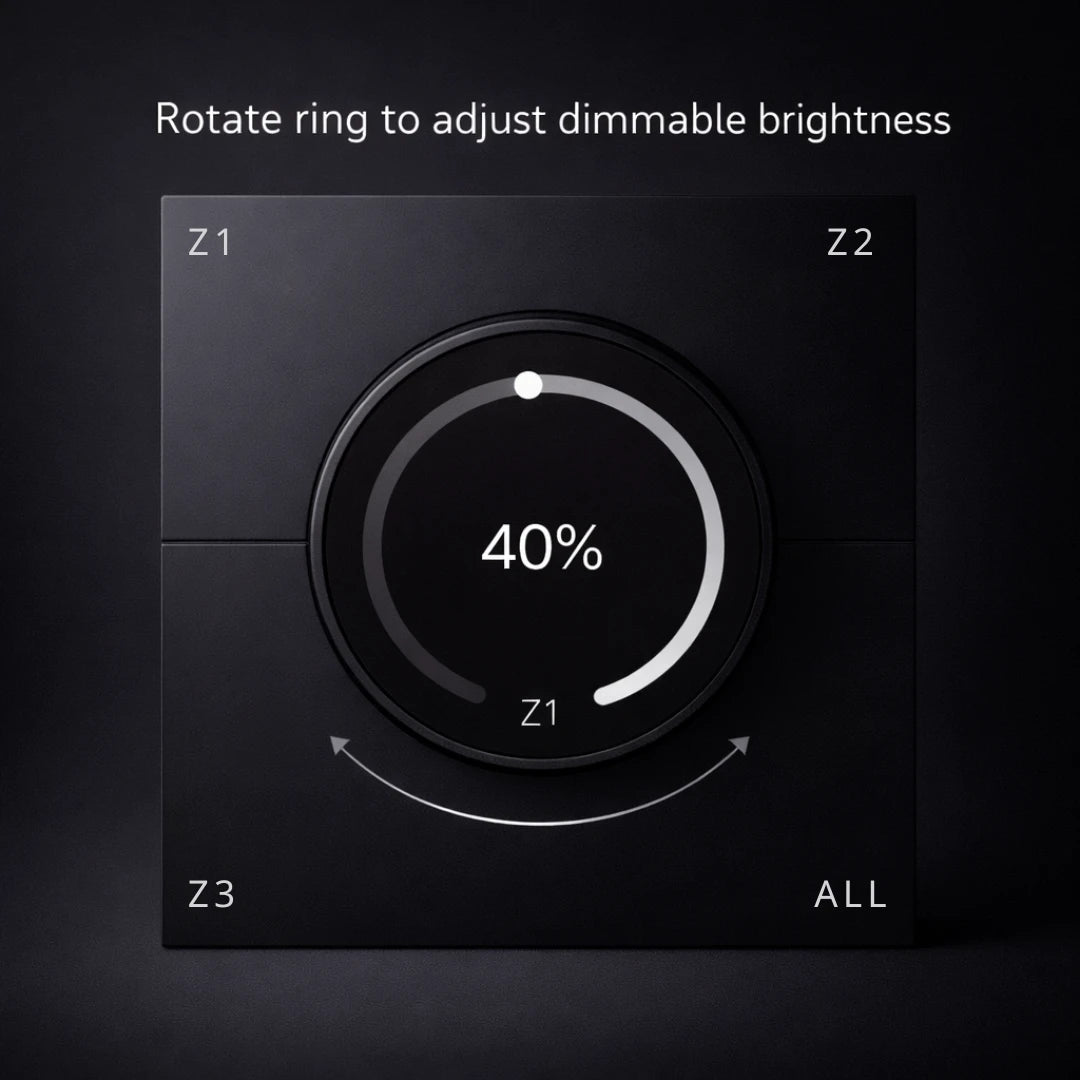

1) Dimming Control

•
  Rotate dial to adjust brightness

•
  Range: 0% – 100%

•
  Displayed on screen


2) Color Temperature (CCT)

•
  Touch screen to switch mode

•
  Slide to adjust color temperature

•
  Value shown in real-time


3) Zone Control

•
  3 independent zones

•
  ALL for group control

•
  Individual or simultaneous operation


4) ON/OFF

•
  Single press: ON

•
  Second press: OFF


Usage Scenarios

•
  Select zone → rotate to dim

•
  Touch screen → adjust color

•
  Use ALL → control all zones

•
  Monitor values on display


Pairing

•
  Activate pairing on receiver

•
  Select zone button

•
  Light flicker confirms pairing

•
  Supports:


  Up to 30 receivers per zone


  Up to 8 controllers per receiver




Key Features

•
  Smart LCD touch interface

•
  RF 2.4G wireless control

•
  Full lighting control (ON/OFF, brightness, CCT)

•
  Multi-zone management (3 + ALL)

•
  Real-time feedback display

•
  Elegant modern design


Technical Specifications

•
  Input Voltage: 100–240VAC

•
  Frequency: 50/60Hz

•
  Transmission Frequency: 2.4GHz

•
  Range: up to 30 meters

•
  Zones: 3 + ALL

•
  Screen: 1.5” LCD

•
  IP Rating: IP20

•
  Operating Temperature: -20°C to 50°C

•
  Warranty: 5 Years


Mechanical Data

•
  Material: Polycarbonate

•

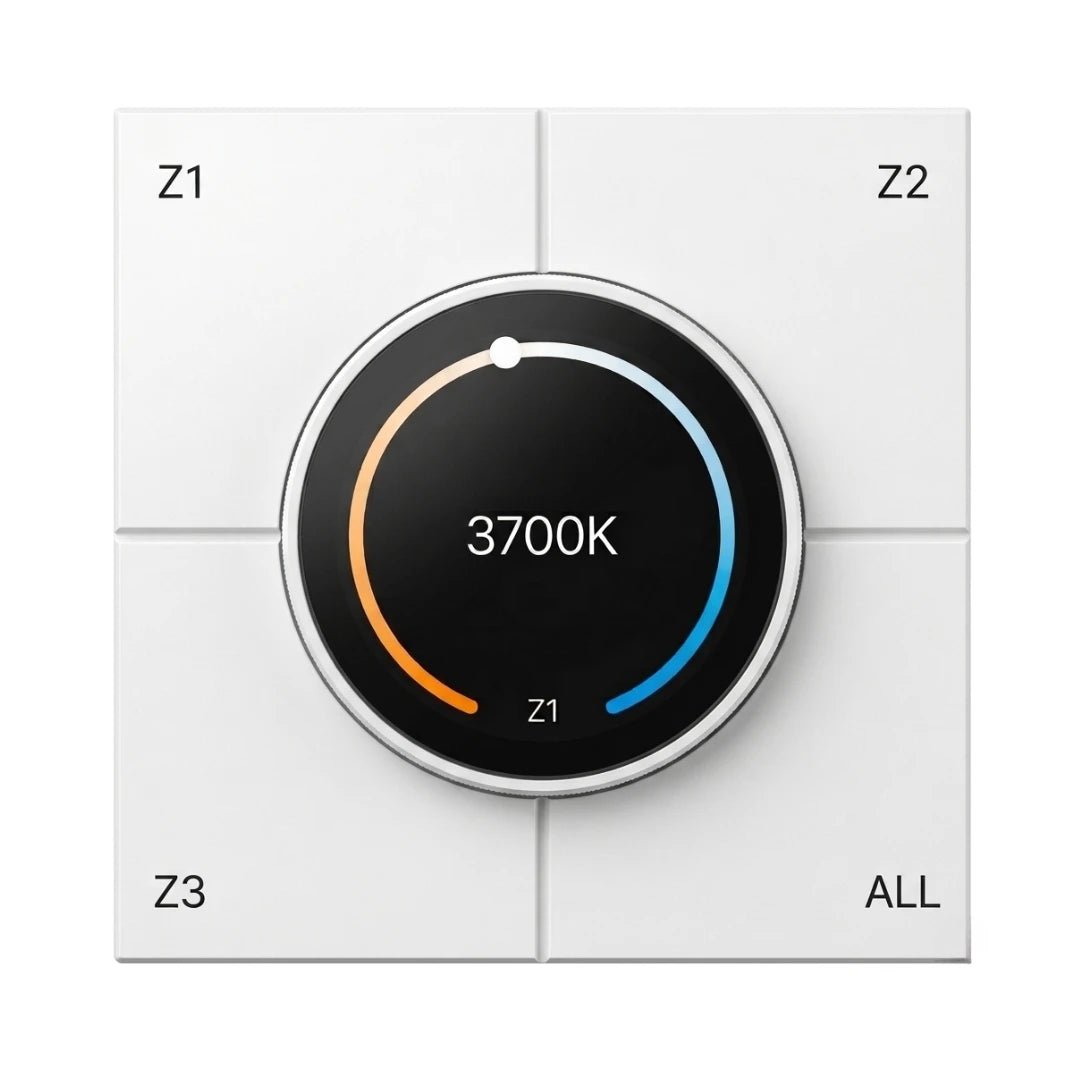

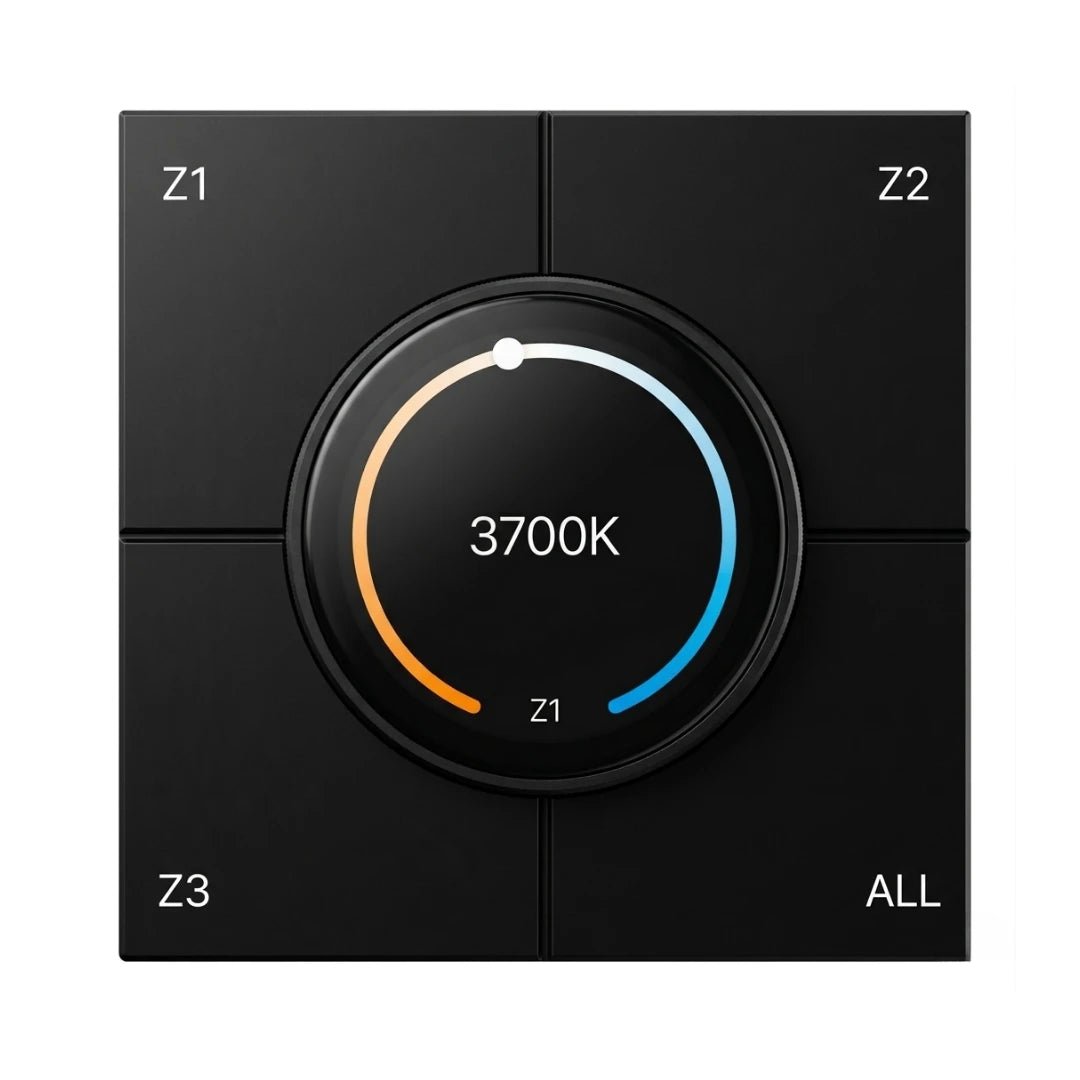

  Colors: White / Black

•

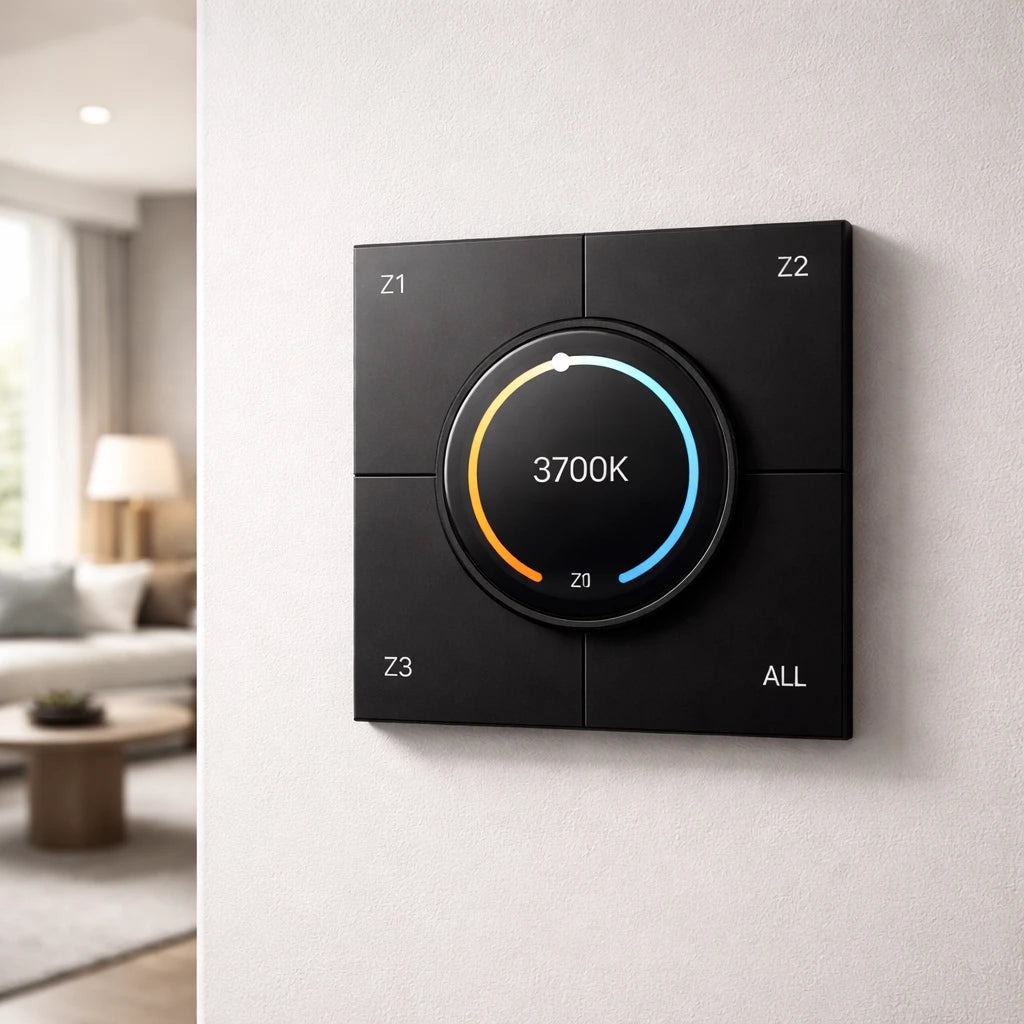

  Wall-mounted compact design


Dimensions

•
  Front: 86 × 86 mm

•
  Depth: 52.3 mm

•
  Additional dimensions included


Applications

•
  Smart homes

•
  Living rooms & bedrooms

•
  Offices

•
  Retail & showrooms

•
  Modern lighting systems


Why Choose UL-AZ1002-LCD-PB?

•
  Advanced touch screen control

•
  Precise lighting adjustment

•
  Multi-zone flexibility

•
  Easy installation and pairing

•
  Premium design with reliable performance

•
  5-year warranty
