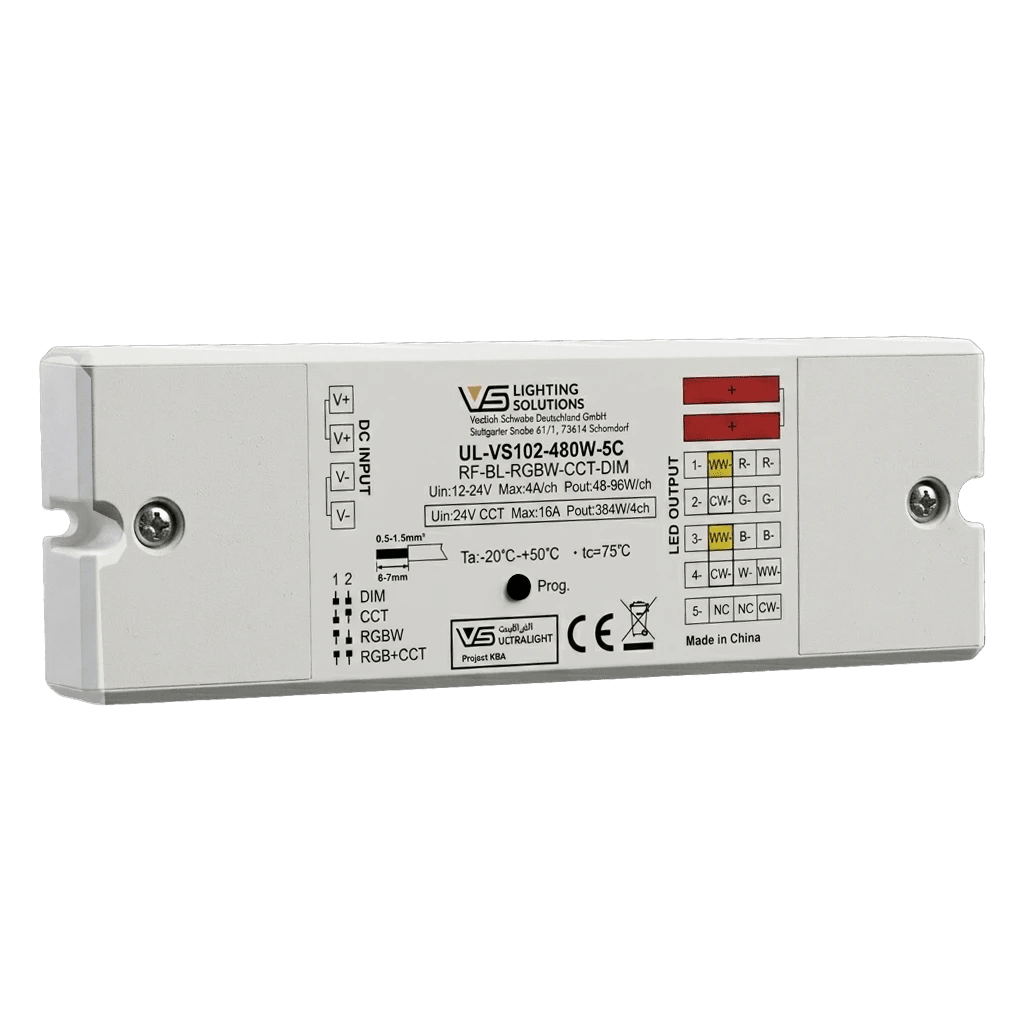

The ULTRALIGHT A-Z Smart Controller (UL-VS102-480W) is a powerful multi-functional smart controller designed for advanced LED lighting systems. It supports dimming, color temperature adjustment (CCT), and RGB/RGBW lighting control, making it ideal for modern smart lighting applications in residential and commercial environments.

Powered by RF 2.4G Mesh technology, it ensures stable wireless communication with a control range of up to 30 meters, while offering seamless integration with mobile apps and smart home systems.

Operation & Functionality

The controller operates on 24VDC and distributes power across multiple output channels, allowing control over:

ON/OFF switching

Brightness (Dimming)

Color Temperature (CCT)

RGB & RGBW color lighting

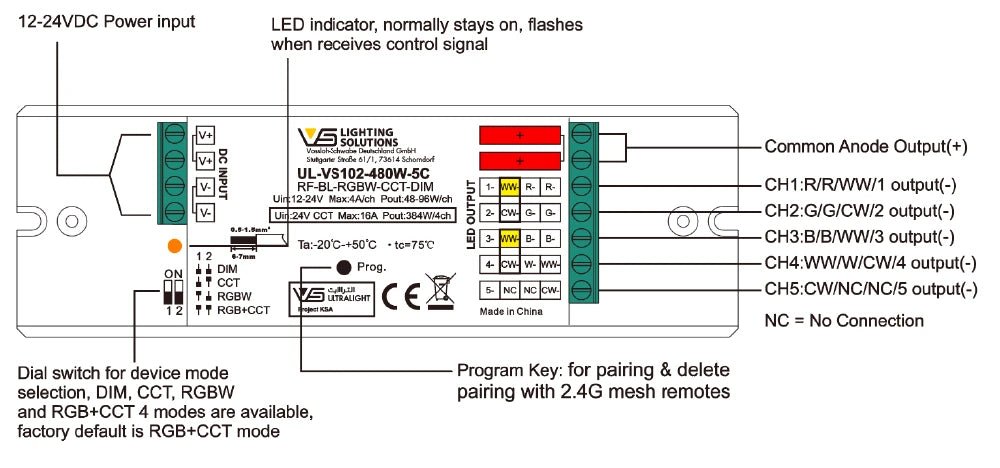

It features a dial switch for selecting different operating modes:

DIM

CCT

RGBW

RGB + CCT

The device can be controlled via:

RF remote controls

Mobile app (HomeeLife App)

Smart home voice assistants

Connectivity & Pairing

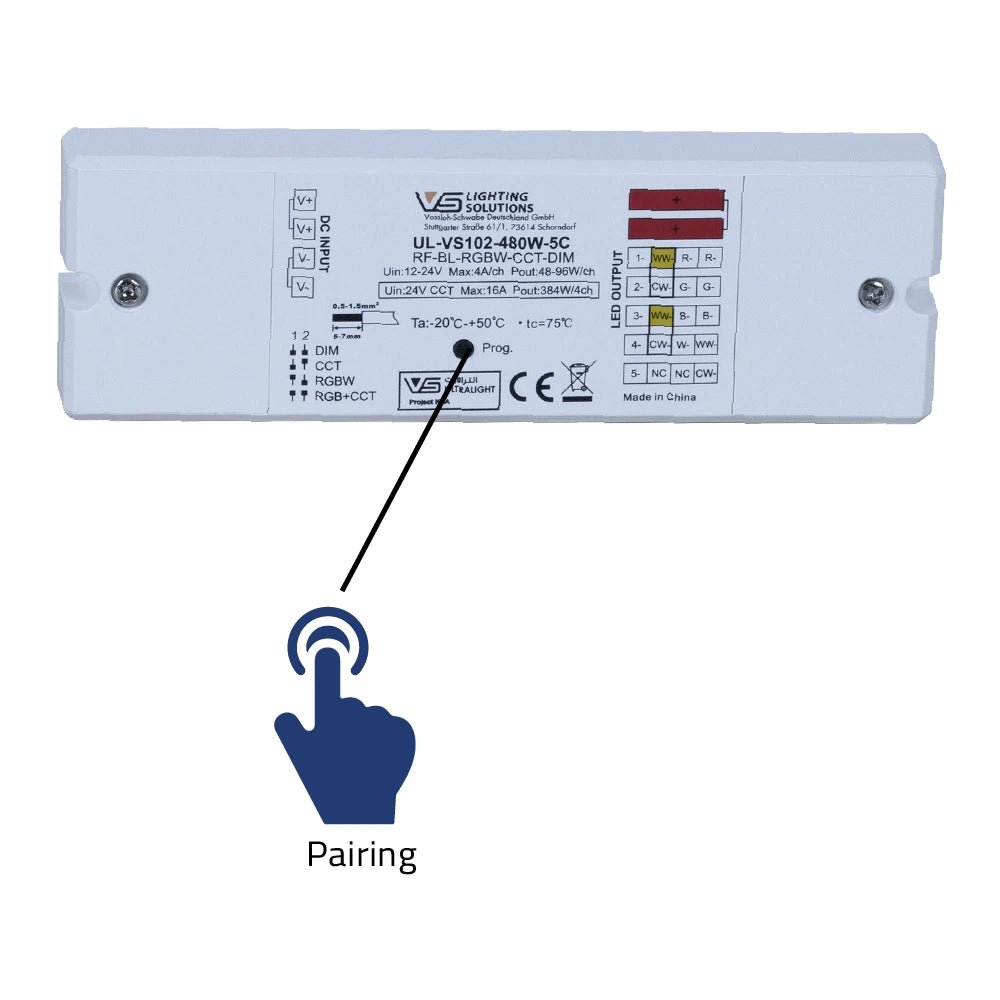

The controller supports quick pairing via the Program/Reset button, allowing:

Easy pairing with RF remotes

Factory reset when needed

Additional features include:

Pairing with up to 8 remote controllers

Mesh networking for extended coverage

Cloud control compatibility with Amazon Alexa & Google Home

Key Features

Multi-function controller (DIM / CCT / RGBW / RGB+CCT).

High power capacity up to 480W and 16A.

Full control of brightness, color temperature, and colors.

RF 2.4G Mesh wireless technology (30m range).

App, remote, and voice control support.

Encrypted two-way communication for fast response.

Compatible with various LED strip types.

Compact and easy installation design.

Quick and simple pairing process.

Technical Specifications

Input Voltage: 24VDC

Max Power: 480W

Max Current: 16A

Channels: 5 channels (4A per channel)

Power per channel: 48–96W

Frequency: 2.4GHz

Transmission Range: 30 meters

IP Rating: IP20

Operating Temperature: -20°C to 50°C

Material: Polycarbonate

Color: White

Warranty: 5 Years

Dimensions

• Size: 145 × 46.5 × 16 mm


Applications

Ideal for:

• Smart lighting systems

• Modern homes

• Decorative lighting

• Commercial projects & showrooms

• RGB and CCT LED strip installations
